Product details

Ram ProMaster 8020 Adapter Brackets – Set of 2

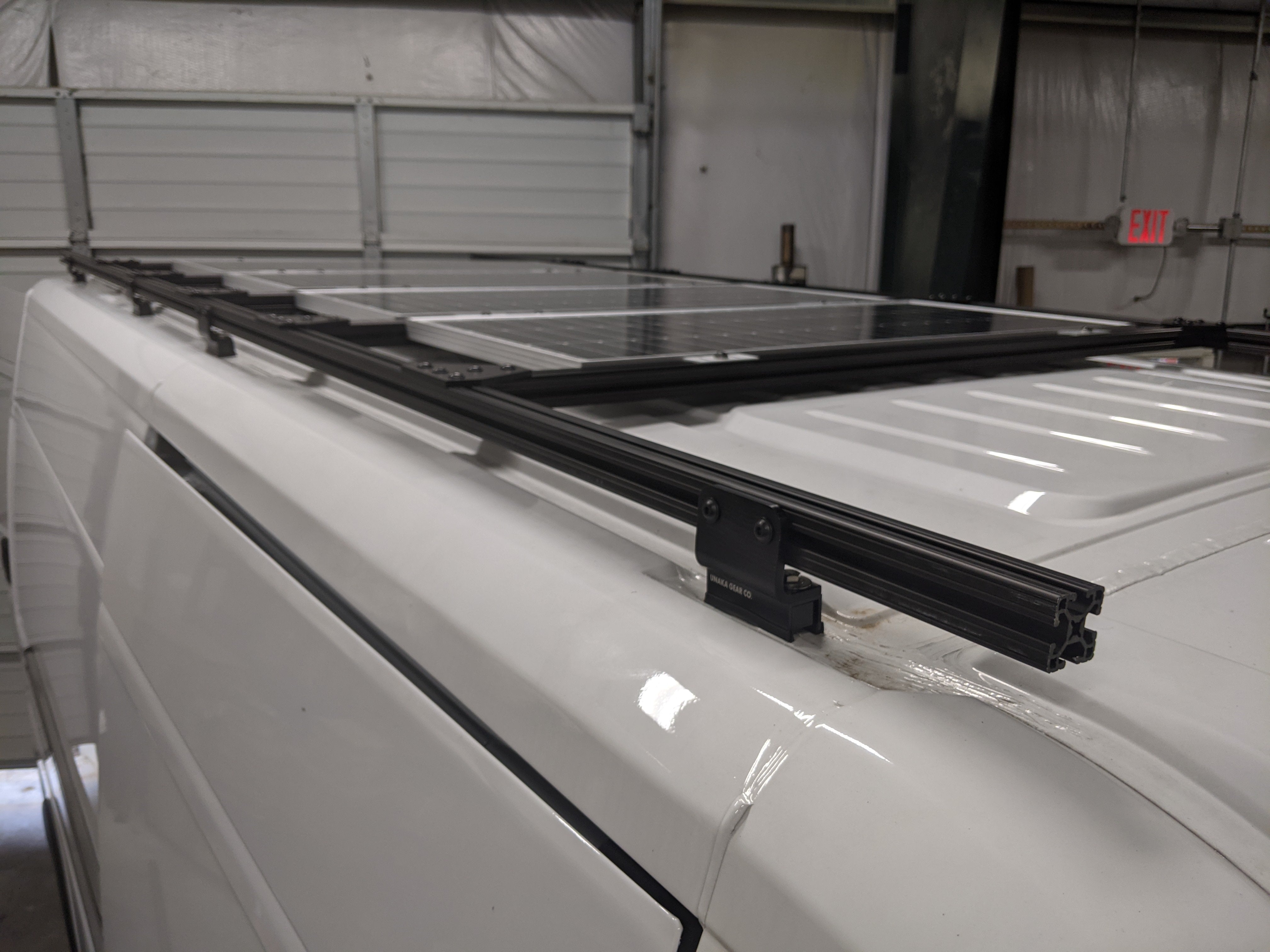

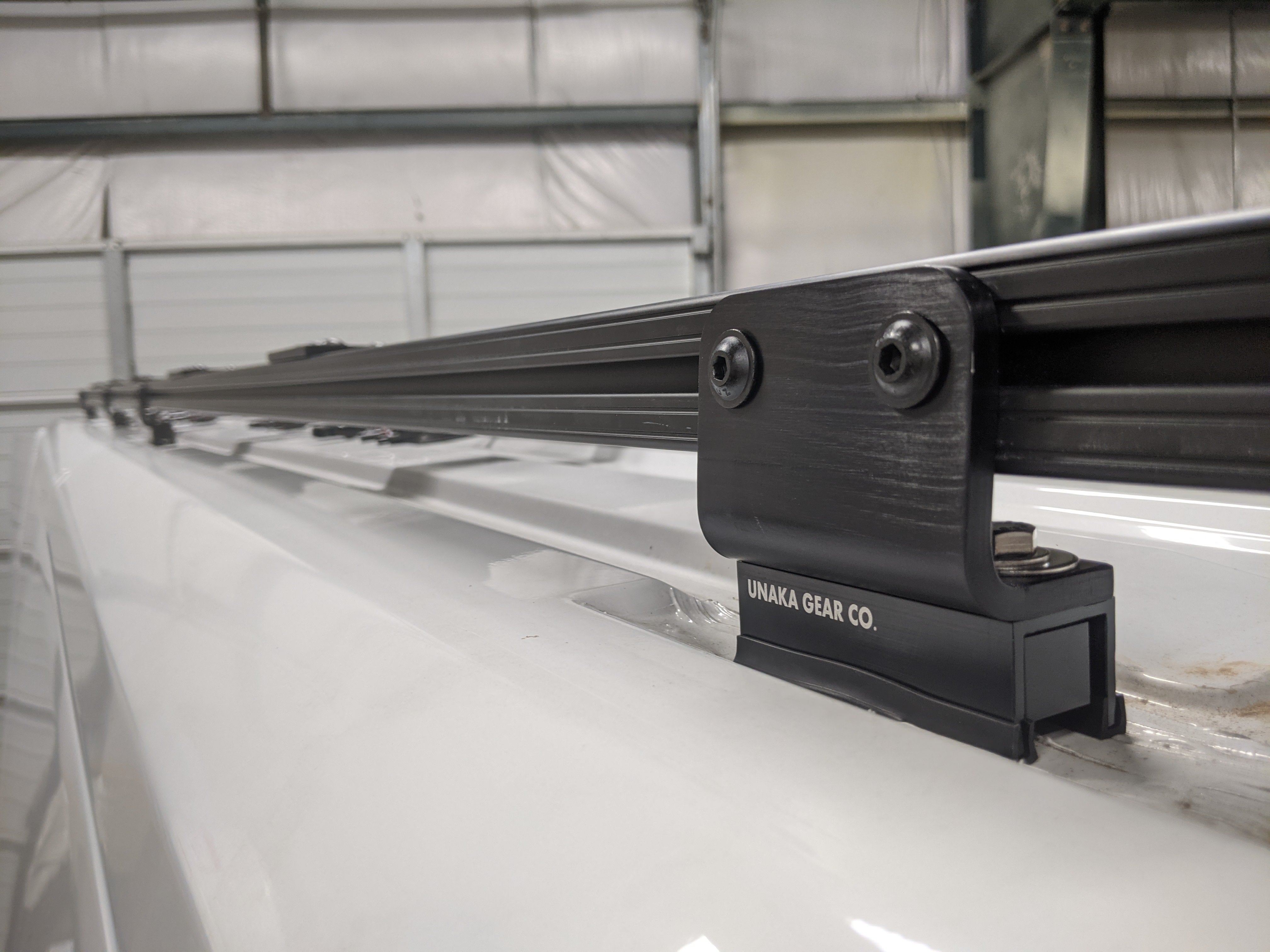

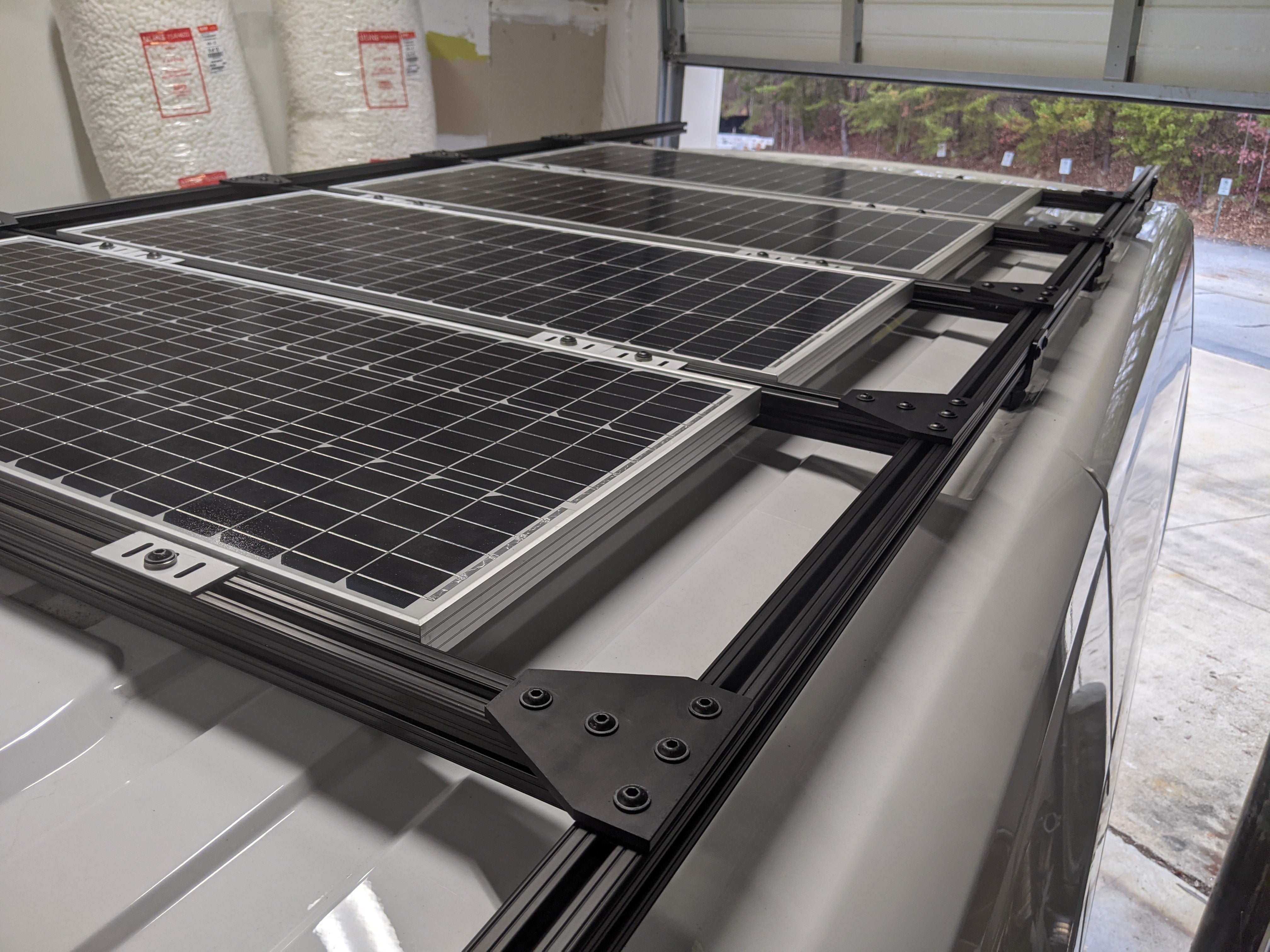

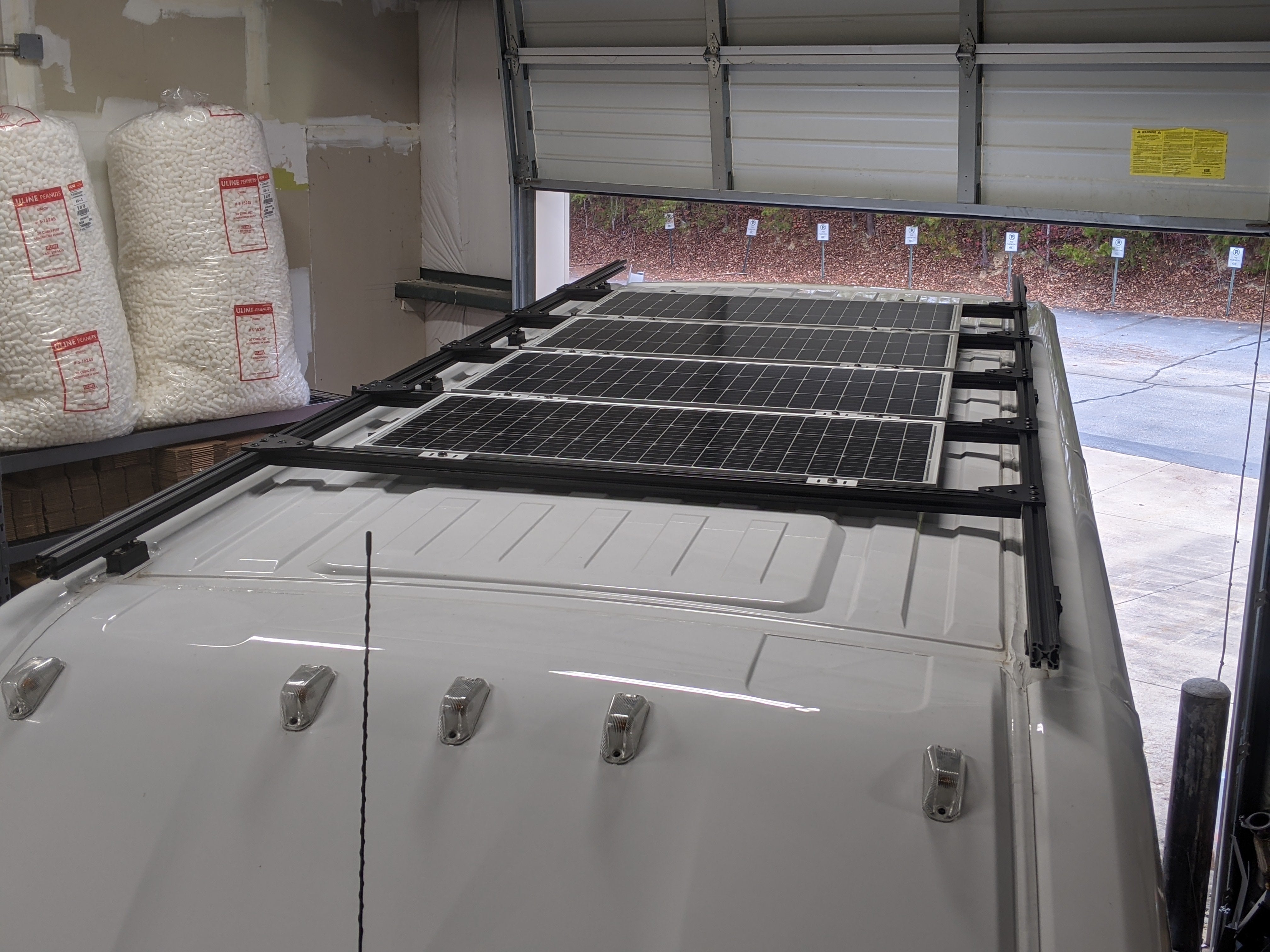

Build a clean, low-profile 8020 roof rack on your Ram ProMaster. These adapter brackets bolt on top of our ProMaster Roof Rack Brackets and connect them to 15 series (1.5") 8020 aluminum extrusion, so you can build a strong, adjustable DIY rack with no drilling into your roof.

We designed them to keep your rack as low as possible. When your crossbars are mounted flush with your side rails, there’s only 1/2" of clearance between the bottom of the crossbars and the highest point of your roof. Each bracket is bent just over 90 degrees to match the slight angle of the ProMaster roof where the mounts sit, so your side rails sit straight and true.

The brackets are precision laser cut from 5052 aluminum, formed, and black anodized for corrosion resistance and a clean finish. Each one includes the stainless steel button head bolts and T-nuts needed to attach your 15 series 8020 side rails.

Note: These adapters mount on top of our Ram ProMaster Roof Rack Brackets, which are sold separately. You’ll need one adapter for each roof rack bracket.


HOW MANY SETS DO I NEED?

Each set includes 2 adapter brackets. Order the same number of sets as your ProMaster Roof Rack Brackets.

  • ProMaster 118" WB – 3 sets for a full rack
  • ProMaster 136" WB – 3 sets for a full rack
  • ProMaster 159" WB – 4 sets for a full rack
  • ProMaster 159" EXT – 5 sets for a full rack

Building a smaller rack? You’ll need at least 2 sets (4 mounting points).

ADVANTAGES
  • Built for 15 Series 8020 – Connects 1.5" 8020 side rails to our ProMaster Roof Rack Brackets with no adapters to piece together.
  • Ultra Low Profile – Just 1/2" of clearance between flush-mounted crossbars and the highest point of your roof.
  • Angled to Fit the ProMaster Roof – Bent just over 90 degrees to match the roof angle at the mounting points.
  • No-Drill Rack Build – Works with our brackets that clamp to the ProMaster’s factory roof studs.
  • 5052 Aluminum, Black Anodized – Laser cut and formed for strength, corrosion resistance, and a clean look.
  • Stainless Steel Hardware – Button head bolts and T-nuts included for each bracket.
SPECS & KIT CONTENTS

Each set includes:

  • 2 black anodized 5052 aluminum 8020 adapter brackets
  • 4 stainless steel 5/16"-18 flanged button head cap screws
  • 4 stainless steel 5/16" T-nuts for 15 series 8020

Specs:

  • Fits: Ram ProMaster 118", 136", 159", and 159" EXT (with Unaka ProMaster Roof Rack Brackets)
  • Compatible with: 15 series (1.5") 8020-style extrusion
  • Material: 5052 aluminum, black anodized
  • Hardware: Stainless steel
  • Tools needed: 3/16" Allen key and a torque wrench
  • Also needed: Unaka ProMaster Roof Rack Brackets (sold separately) and 15 series 8020 side rails
COMPATIBILITY
