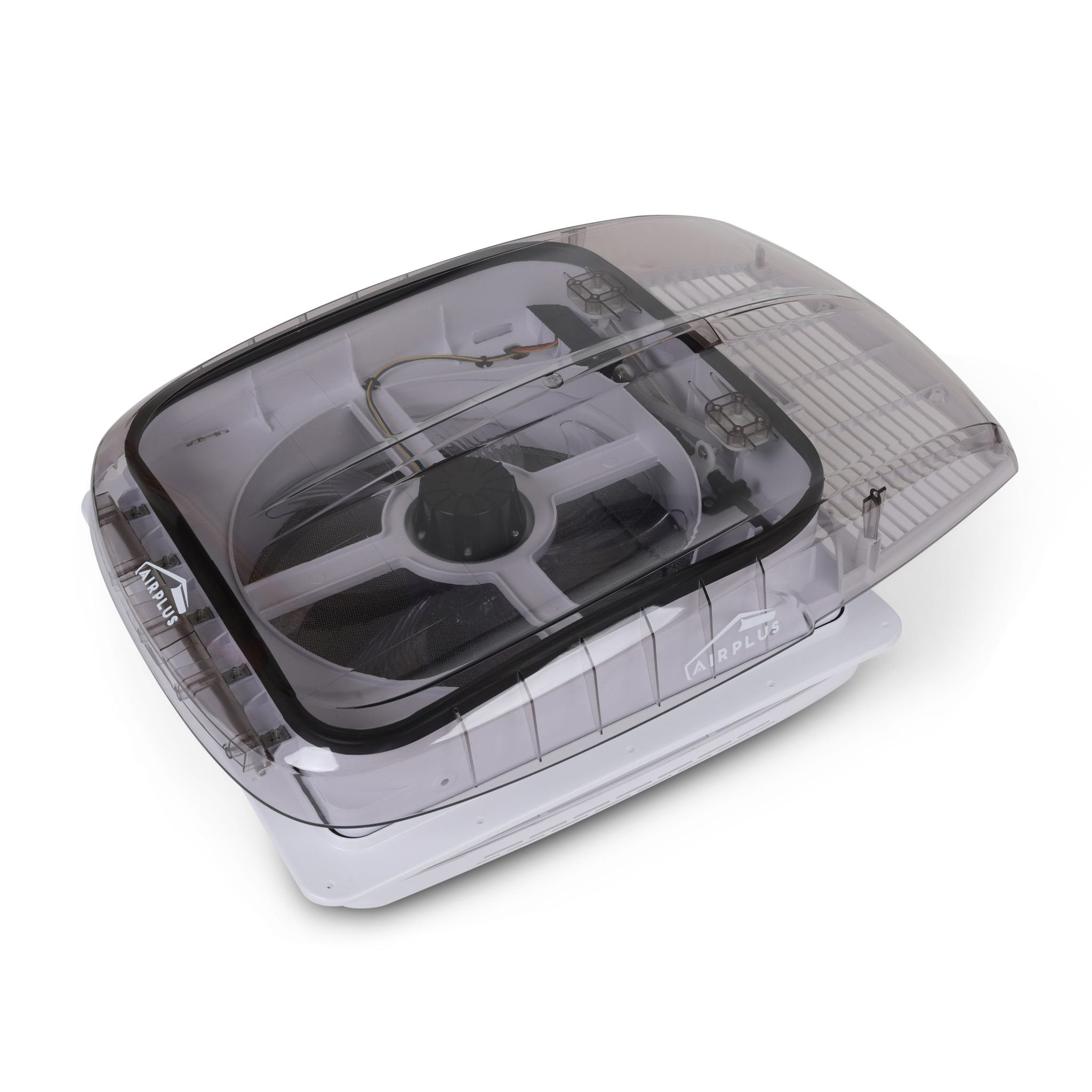

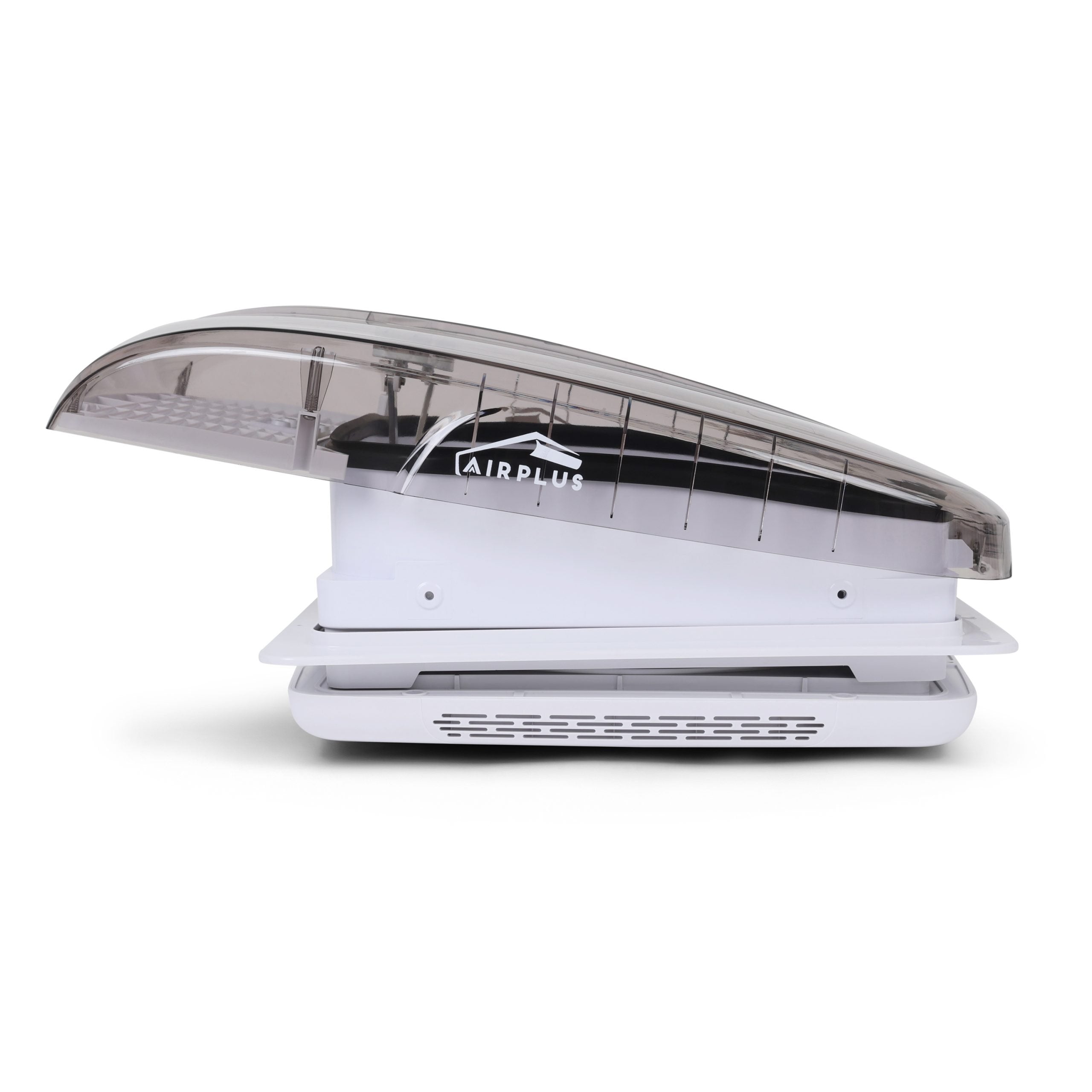

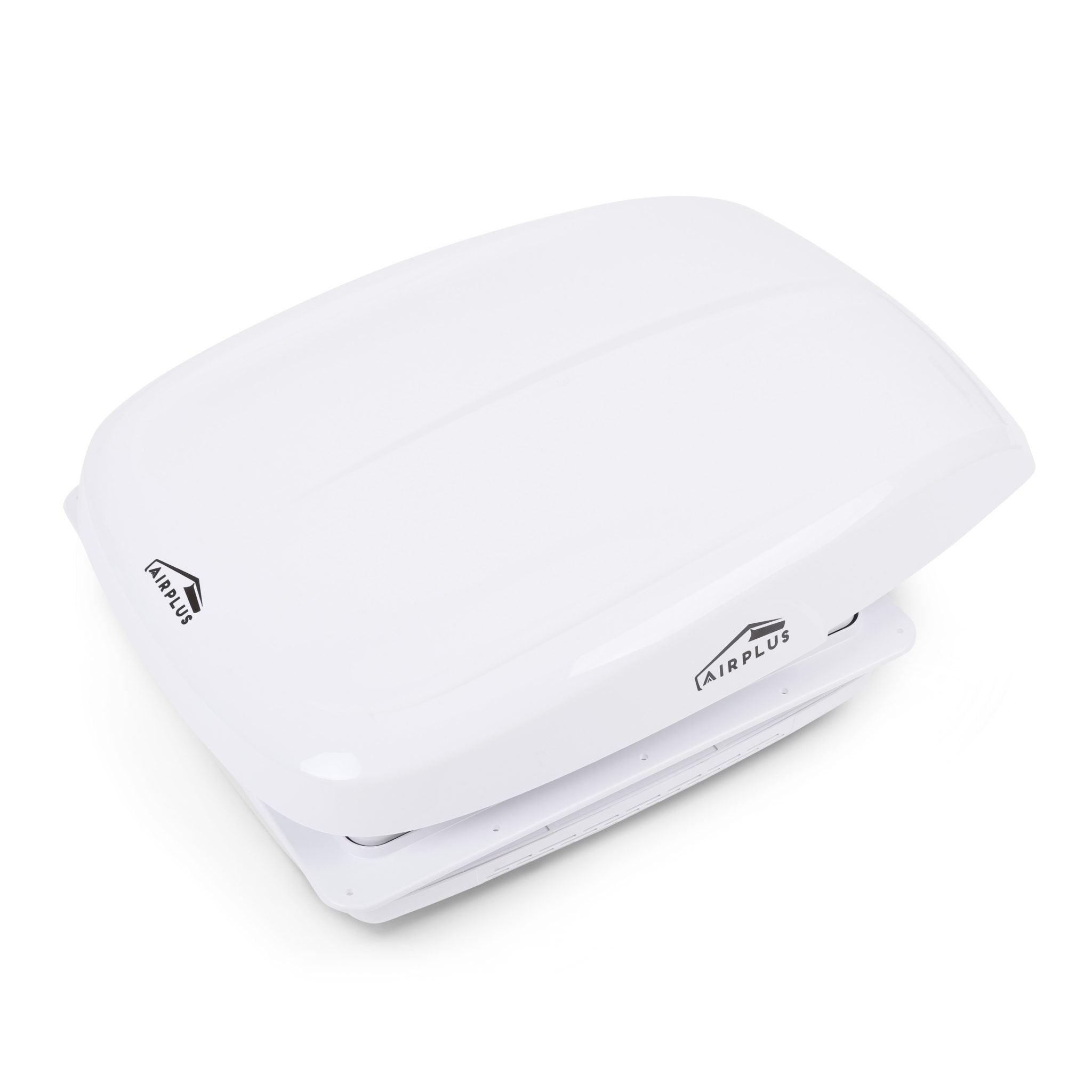

NomadicArk - AirPlus Roof Vent Fan

The NomadicArk - AirPlus Roof Vent Fan redefines motorhome and caravan ventilation systems by offering a comprehensive solution that integrates a vent, fan, and blind protection into a single unit.

  • Lightweight, compact, stylish and ergonomic design
  • High ventilation capacity: 3000 m3/h
  • Reliable brushless motor
  • Low power consumption
  • Ultra quiet operation (<53dB)
  • Remote control or touch operated
  • Choice of two sizes (355mm and 400mm) and 3 dome colours
  • Two-way control
  • LED lighting as standard
  • Integrated blind and fly screen as standard

Deluxe comes as standard.

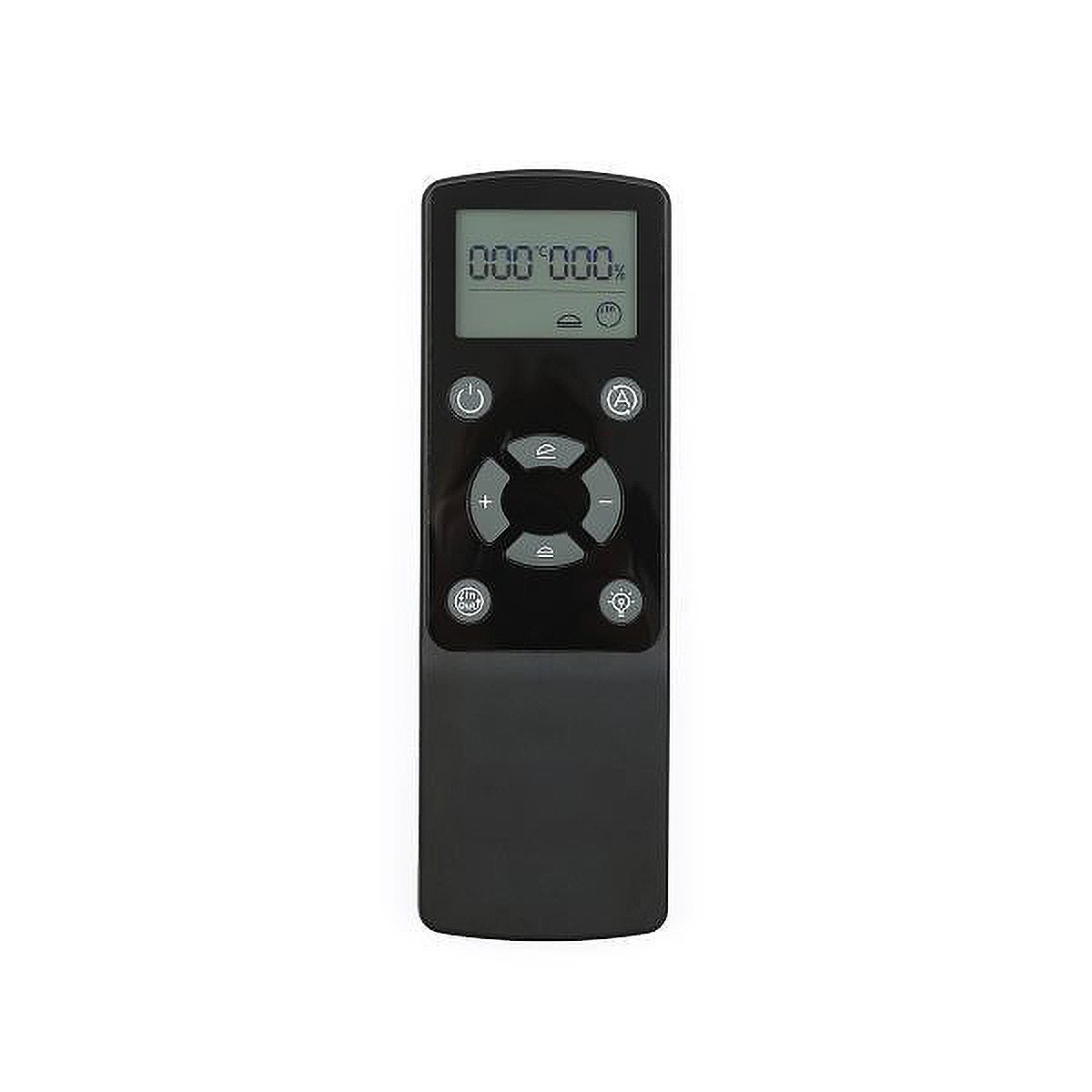

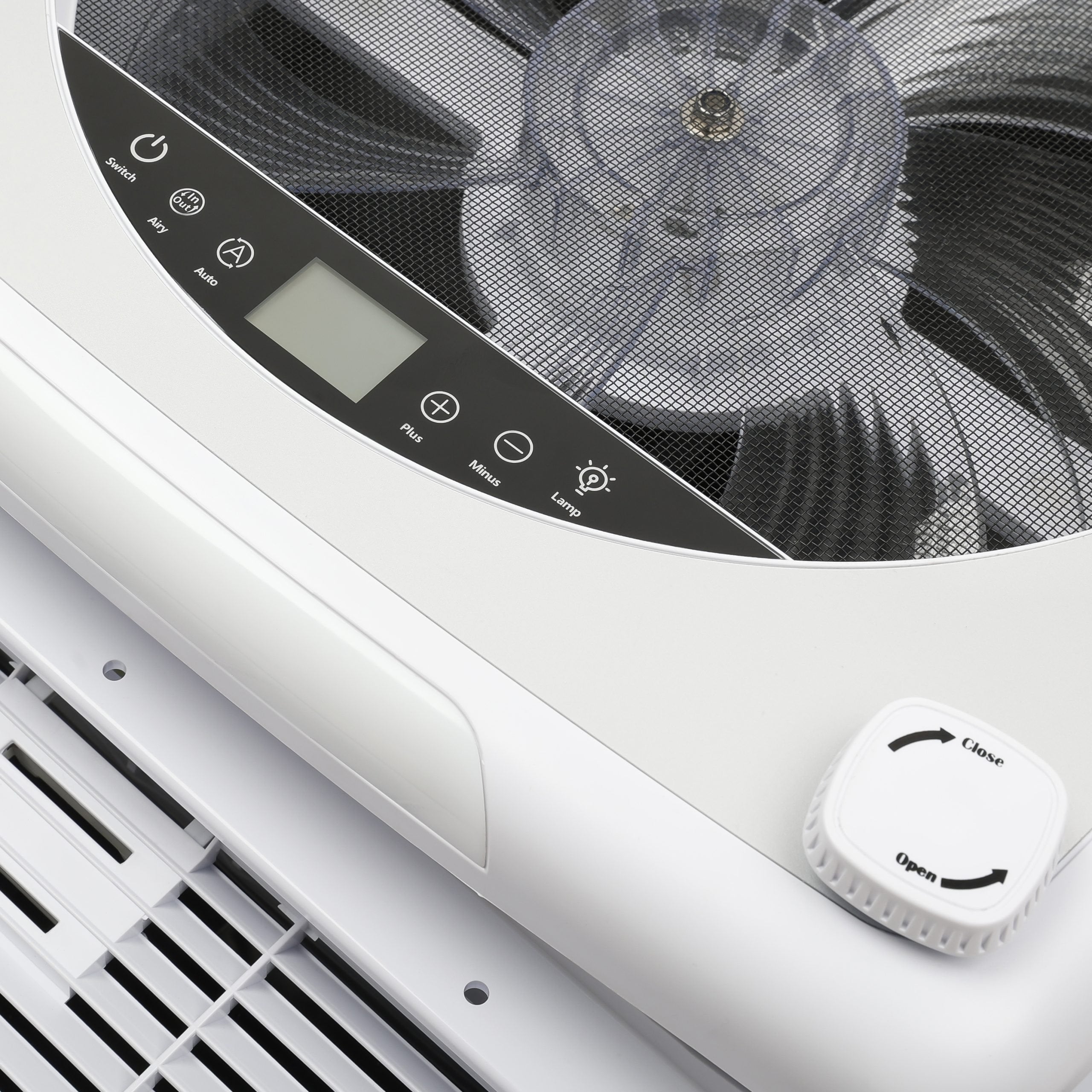

Experience seamless control over your environment with the AirPlus fan. Whether you prefer the included remote for motorised lid operation or the intuitive integrated touch panel, you can easily adjust airflow settings to achieve your desired level of comfort.

The AirPlus boasts an impressive range of features, including 10 selectable airflow levels for precise customisation. It also offers versatile two-way operation (intake and exhaust) to promote balanced air circulation within your space. For ultimate convenience, intelligent auto mode automatically regulates airflow based on internal temperature, ensuring a consistently refreshed environment.

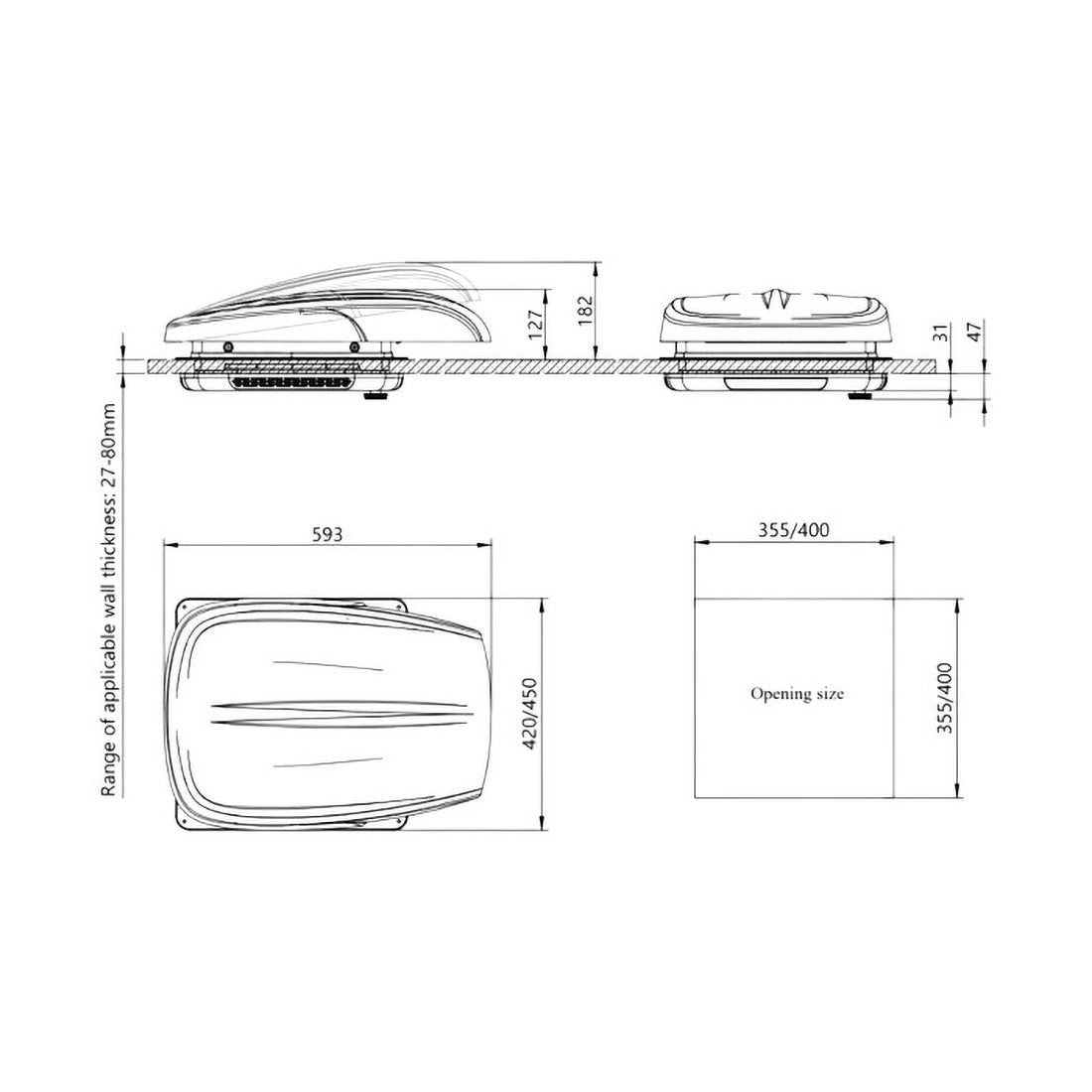

Measured to Fit

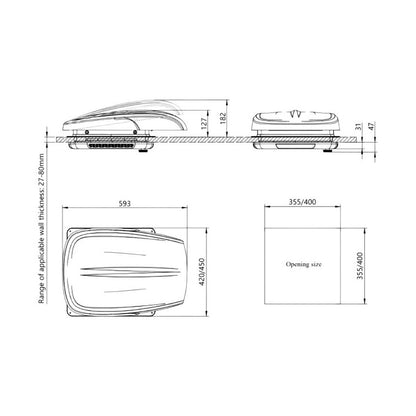

Discover precision and performance like never before with our AirPlus Fans. Designed to seamlessly integrate with any vehicle they are available in 355mm and 400mm aperature sizes. Designed to deliver optimal airflow efficiency, each fan is crafted to fit perfectly, ensuring a sleek and tailored appearance while maximising cooling power.

ADVANTAGES
  • Rain or shine – built-in rain cover lets you run the fan in any weather
  • Drive-ready – safe to use while driving
  • Custom comfort – 10-speed fan with reversible airflow and thermostat control
  • Remote option – add a remote with a programmable thermostat for extra convenience

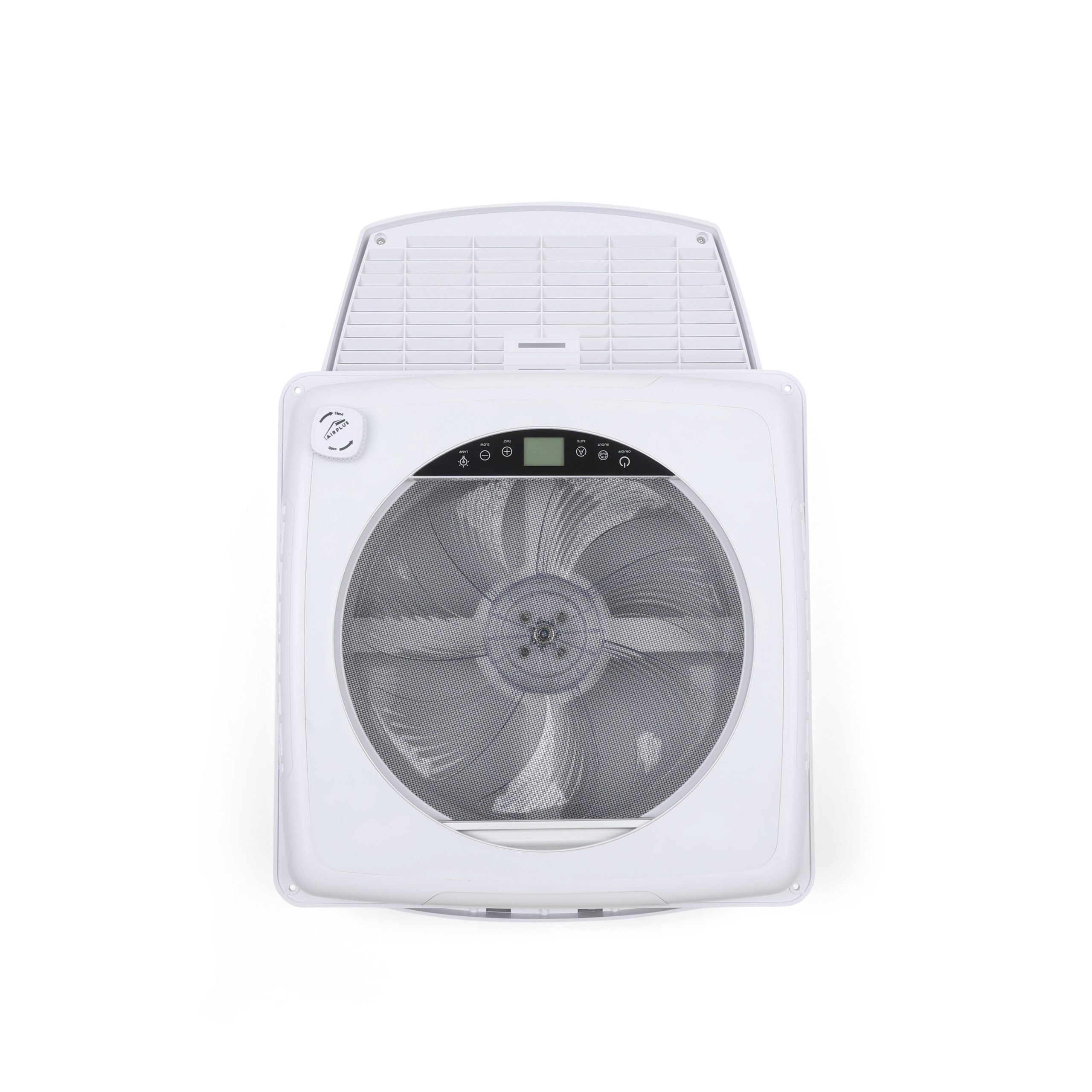

  • Easy to clean – interior insect screen pops out without tools
  • Universal fit – fits all standard 14" x 14" roof openings
  • Durable build – long-life 12V motor with 10-blade fan and fuse protection
  • Reliable warranty – 2-year limited warranty, plus lifetime warranty on the lid
SPECS & KIT CONTENTS

Net Weight:
355: 4.5kg / 400: 4.6kg
Finish:
Opaque

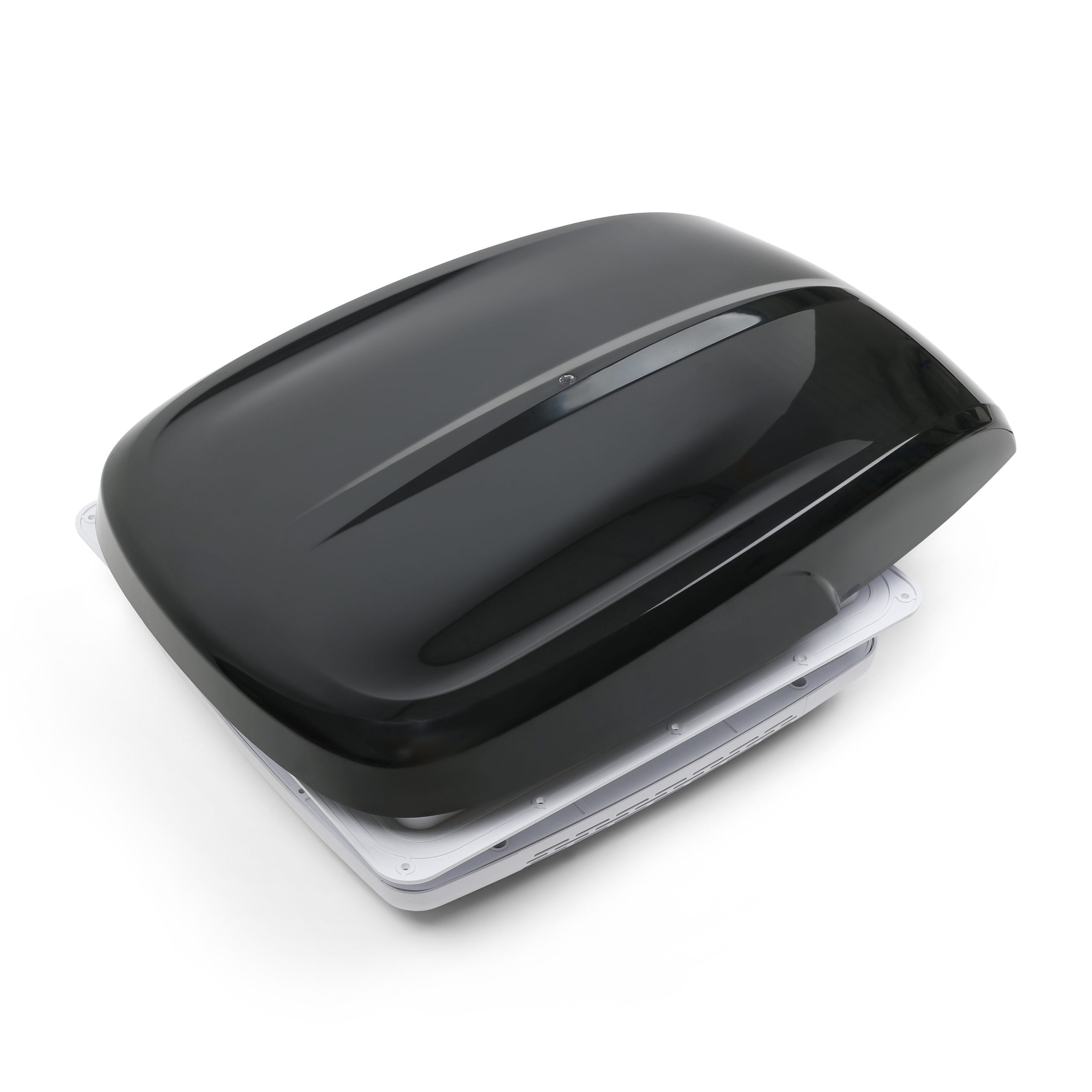

Colours:
White, Black, Smoke
Noise Level (dB):
<53 (<29 at average speed)
Packaging Dimensions (mm) (LxWxH):
615 x 475 x 230
Gross Weight (kg):
355: 6.4 / 400: 6.6

Mounting wall thickness (mm):
27-80
IP Rating:
IPX4
Max. Ventilation (m³/min):
3,000
Input Voltage (DC, V):
12V (works 9-16V)
Input Power (DC, W):
20W + 4W (Fan + Lighting)
Rated Current:
0.25A – 2A
