The MEGA 200 Pro Solar Panel delivers reliable 200-watt 24V power, ideal for off-grid applications like RVs, boats, and cabins. Designed for durability and efficiency, it features a 25-year output warranty and UL certification, ensuring long-term performance and safety. Begin your off-grid solar setup with confidence using this premium 12V panel from RICH SOLAR.
Features

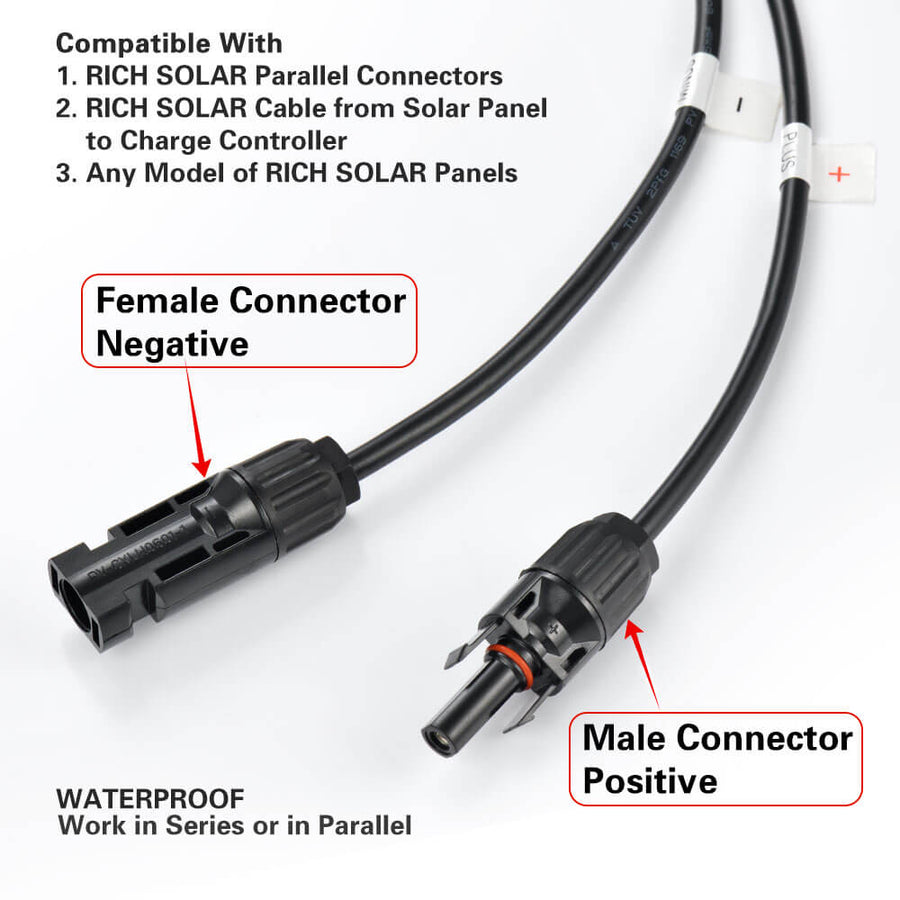

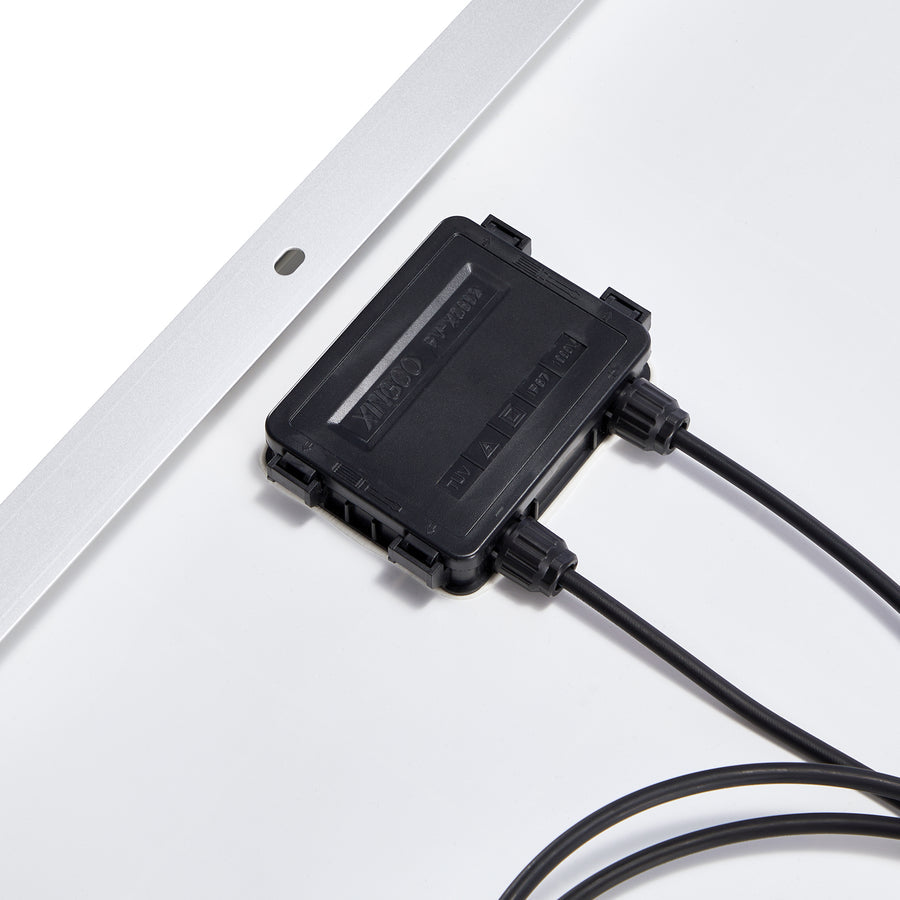

- Generates 5.51A of power, charges 24-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
- Excellent low-light performance even on early mornings, evenings, and cloudy days.

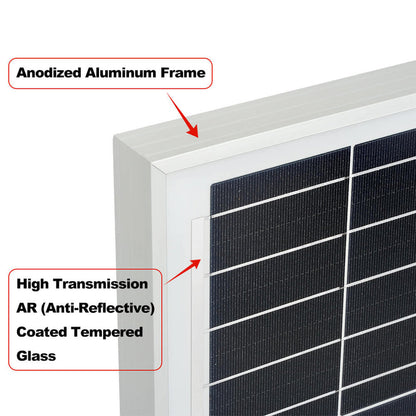

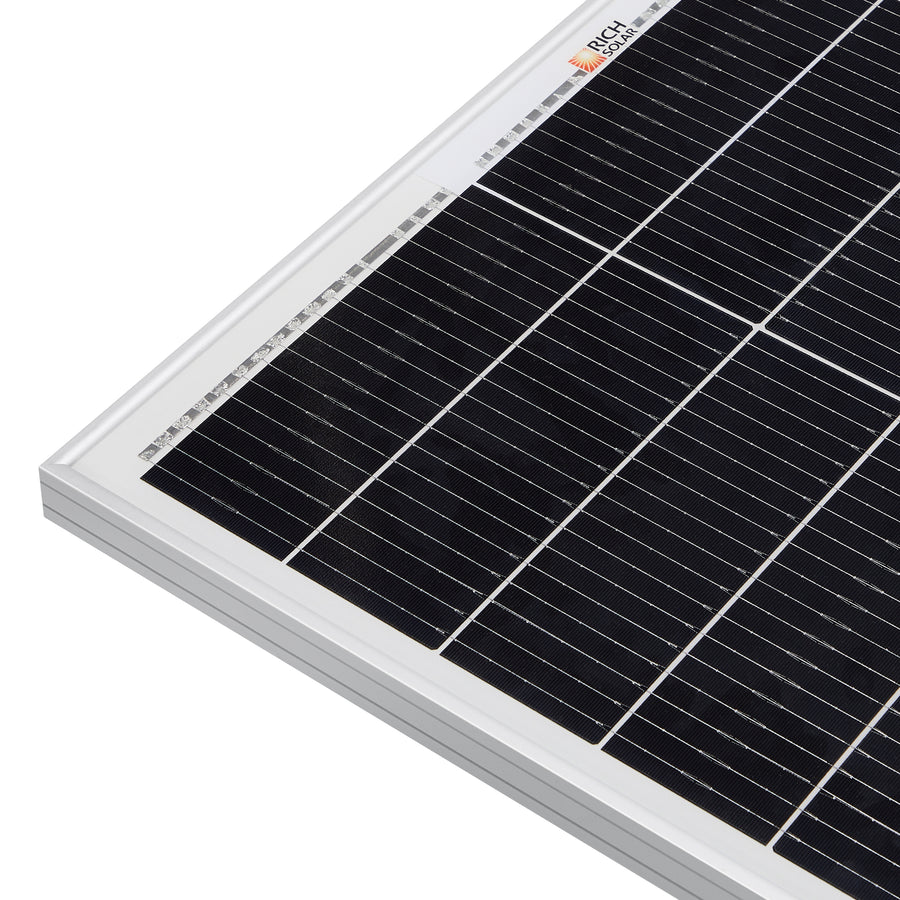

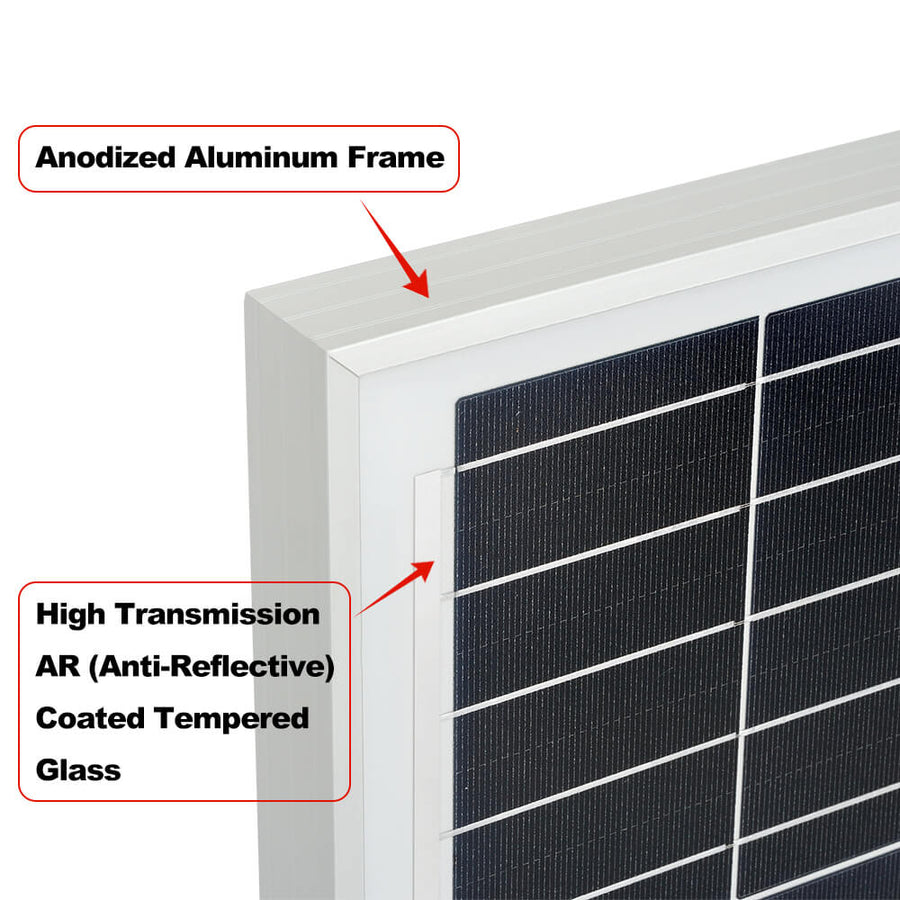

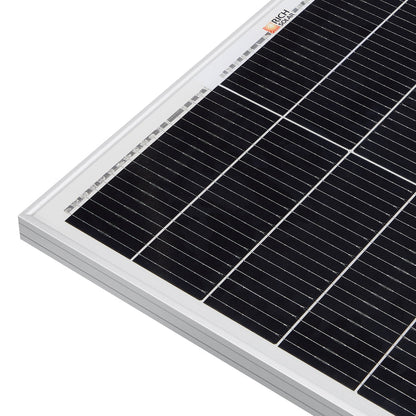

- Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.

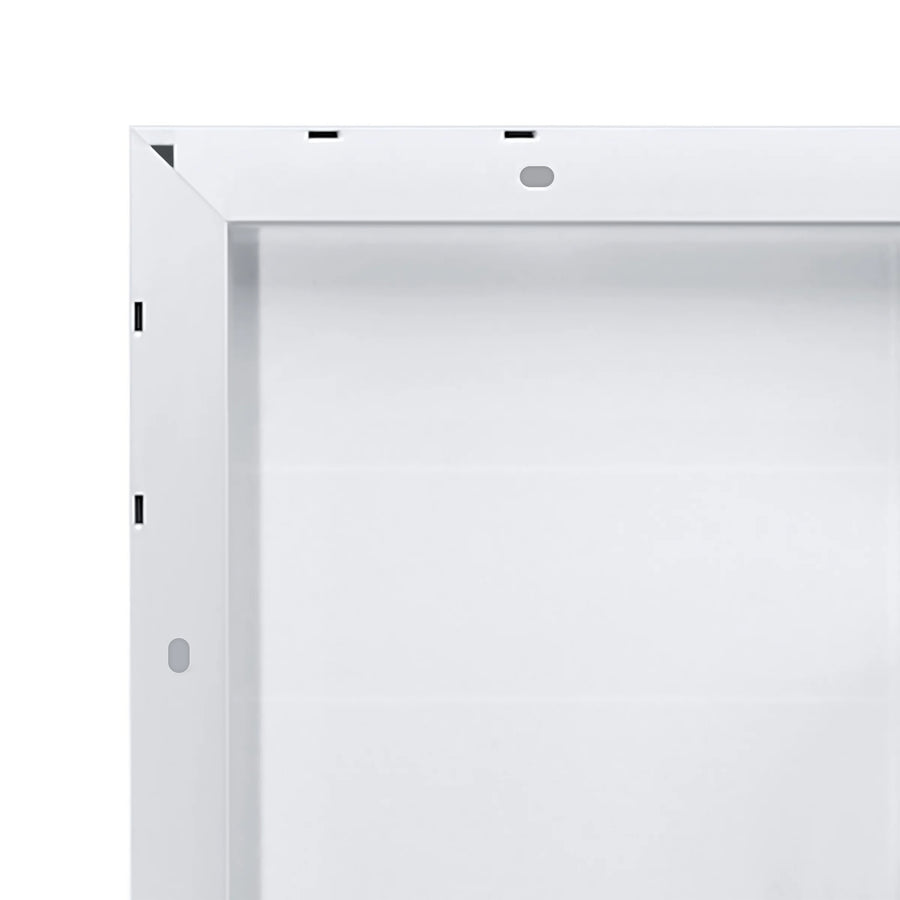

- Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
- 25-year limited warranty for power output; 10-year workmanship warranty.
Installation
- Easy installation and handling for various applications (high-end off-grid and mobile applications)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
- Compatible with on-grid and off-grid inverters
Warranty
- 25-year limited power output warranty
- 10-year workmanship warranty

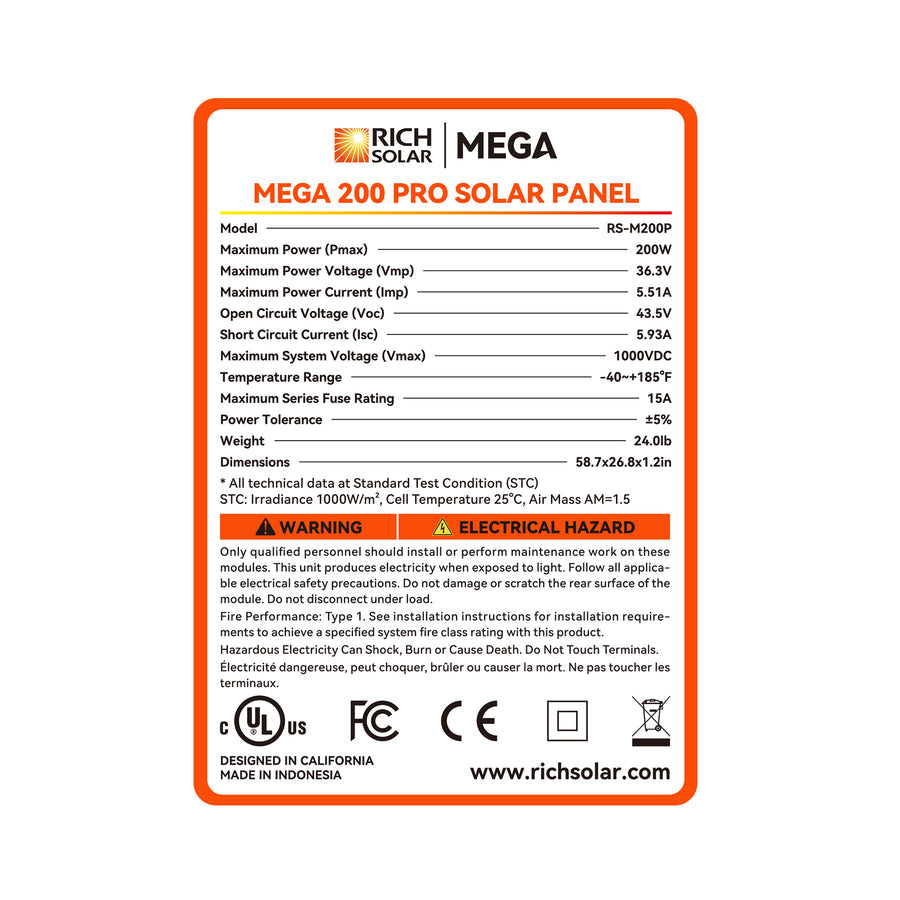

Specifications
-
Maximum Power(Pmax): 200W
-
Maximum Power Voltage(Vmp): 36.3V
-
Maximum Power Current(Imp): 5.51A
-
Open Circuit Voltage(Voc): 43.5V
-
Short Circuit Current(Isc): 5.93A
-
Maximum System Voltage: 1000 VDC
-
Maximum Series Fuse Rating: 15A
-
Temperature Range: -40 ~ +185°F
-
Weight: 24.0 lb
-

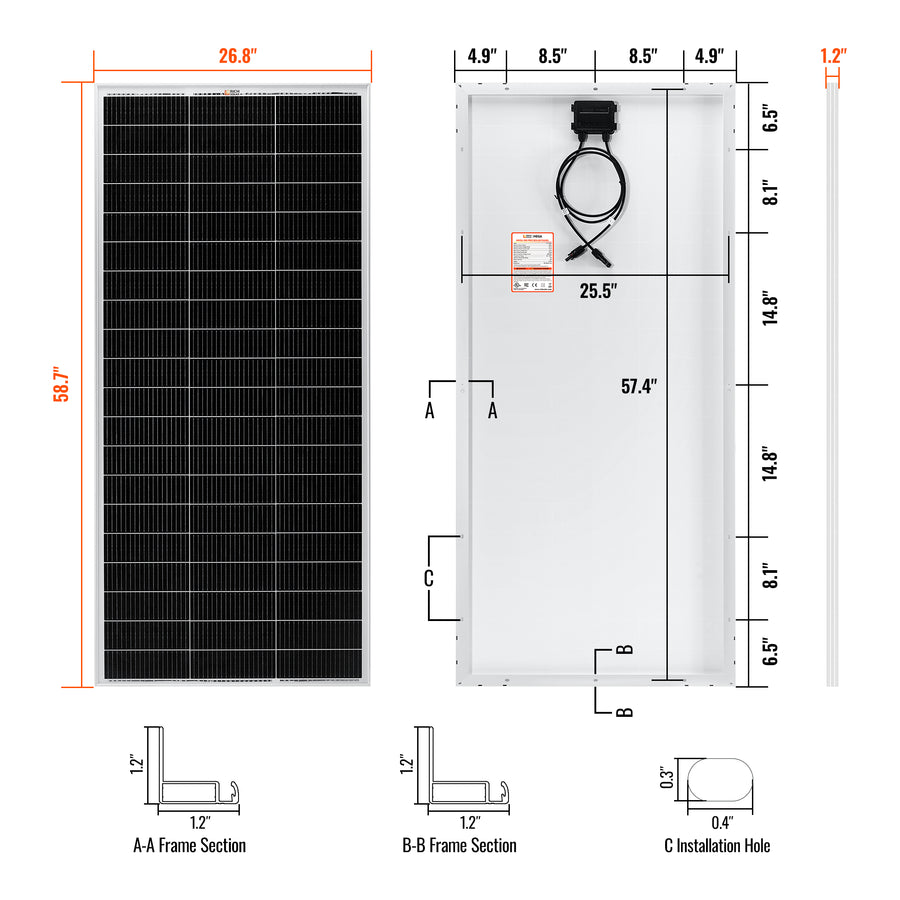

Dimensions: 58.7 x 26.8 x 1.2 in
