Product details



Features

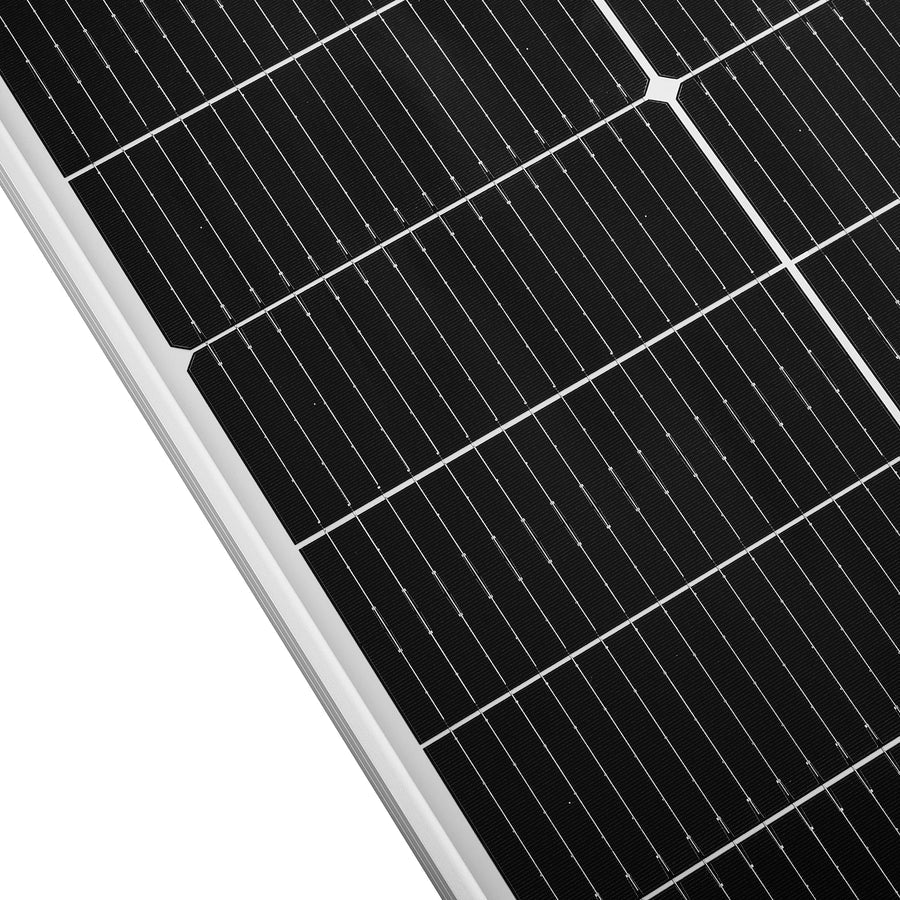

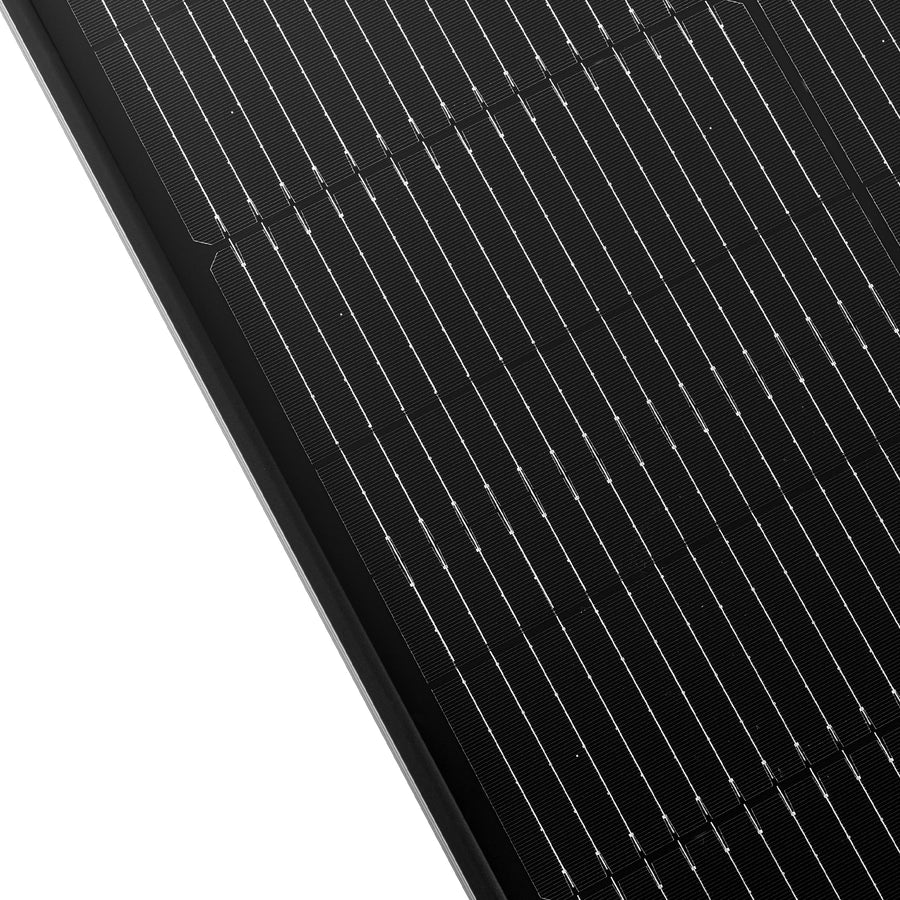

  • 16-busbar monocrystalline cells with up to 25.1% efficiency

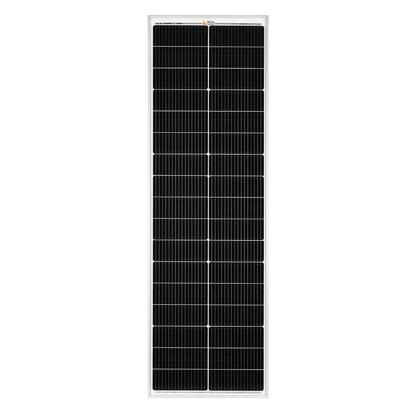

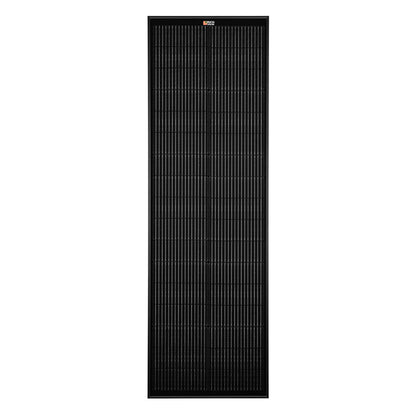

  • 34-cell configuration delivers a reliable 100W output
  • 3.2 mm AR-coated tempered glass maximizes sunlight capture and durability
  • Power tolerance 0 to +5W ensures at least the rated output
  • Excellent low-light performance on cloudy days and at dawn/dusk
  • Tested for UV exposure, thermal cycling, humidity freeze, and more
  • PID-resistant and 100% EL-inspected to prevent microcracks
  • Certified to withstand 2400 Pa wind, 5400 Pa snow load, and 35 mm hail at 97 km/h
  • Perfect for RVs, vans, truck campers, overland rigs, and marine systems

Installation

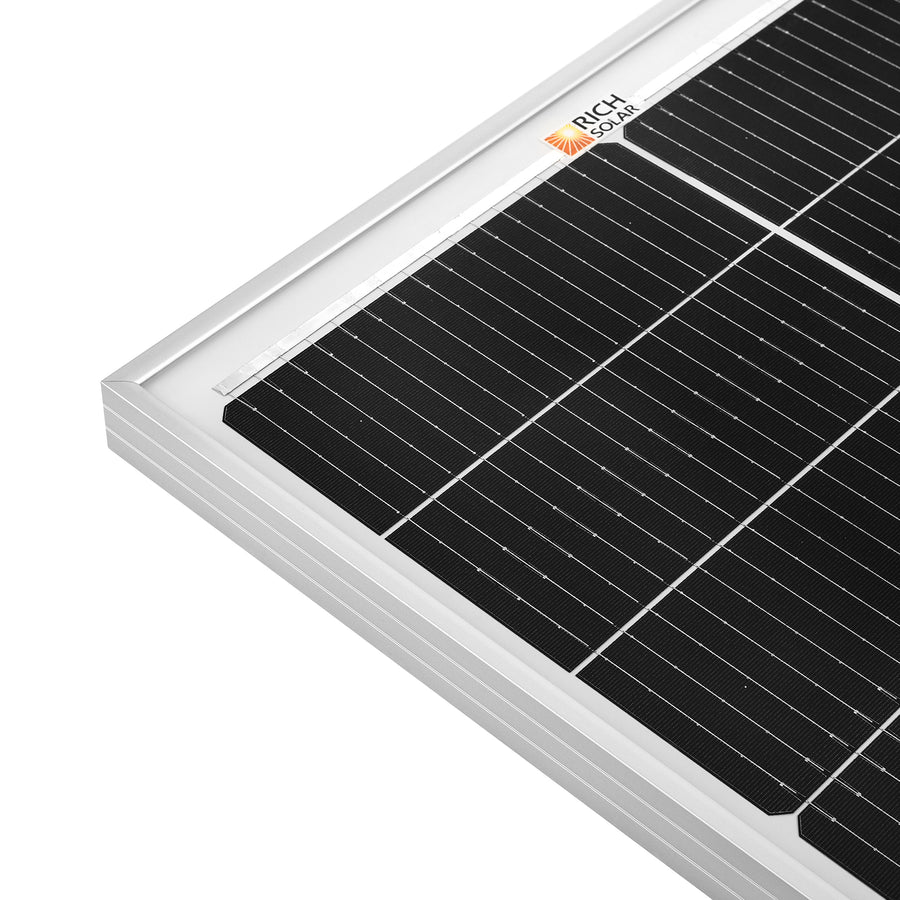

  • Durable anodized aluminum frame — lightweight and corrosion-resistant

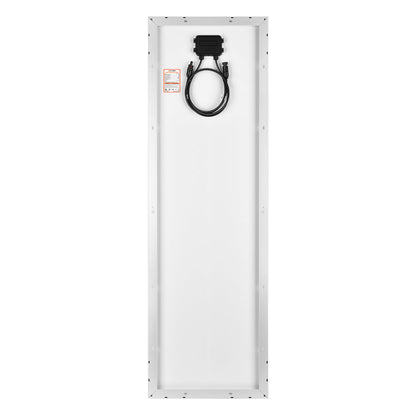

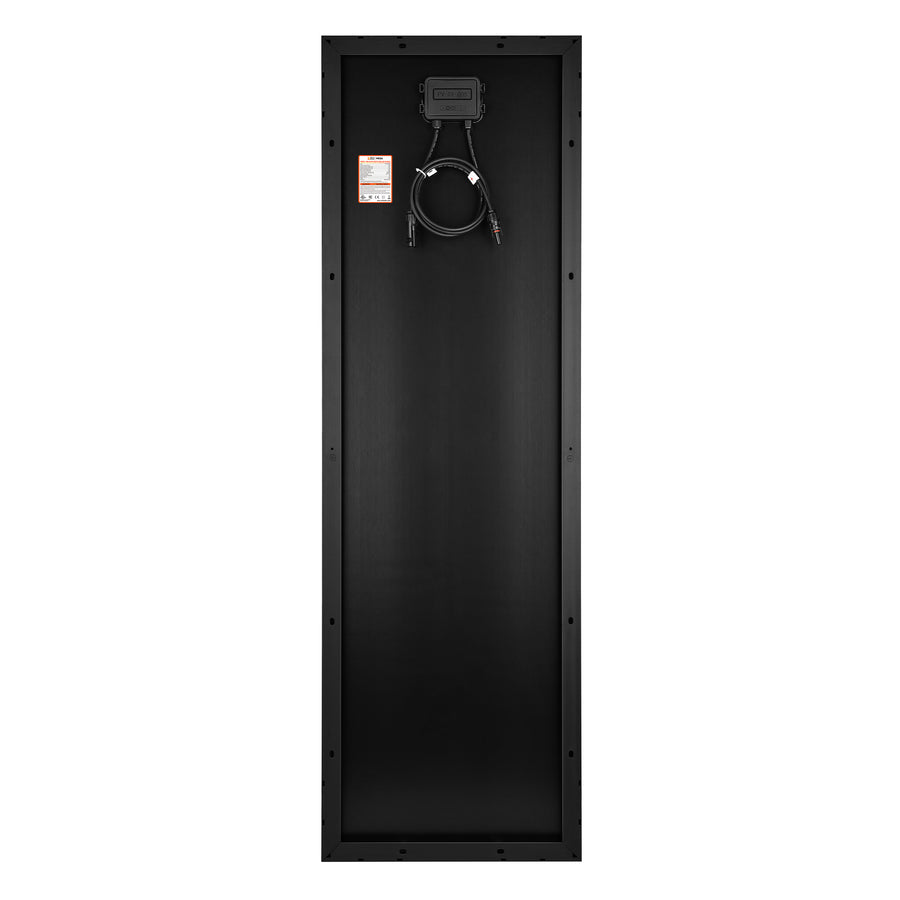

  • 12 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation
  • MC4 connectors with 3 ft pre-attached cables for easy connection to other solar panels
  • Compatible with both on-grid and off-grid inverters

Warranty

  • 25-year output warranty
  • 10-year workmanship warranty

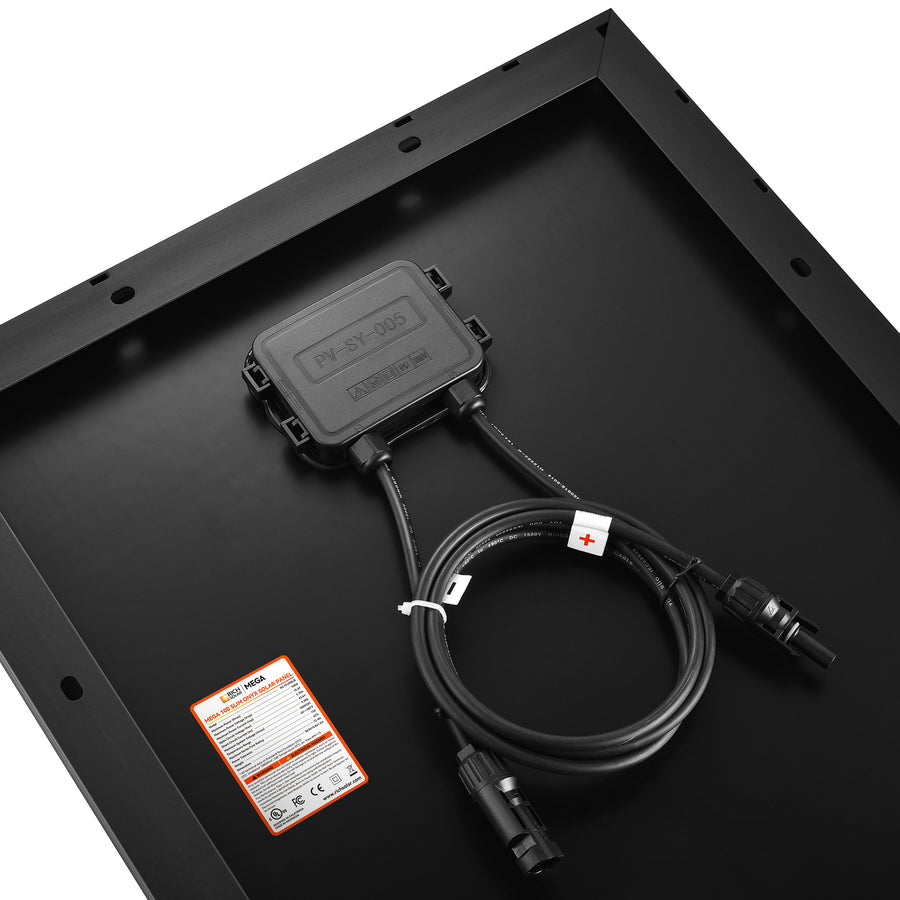

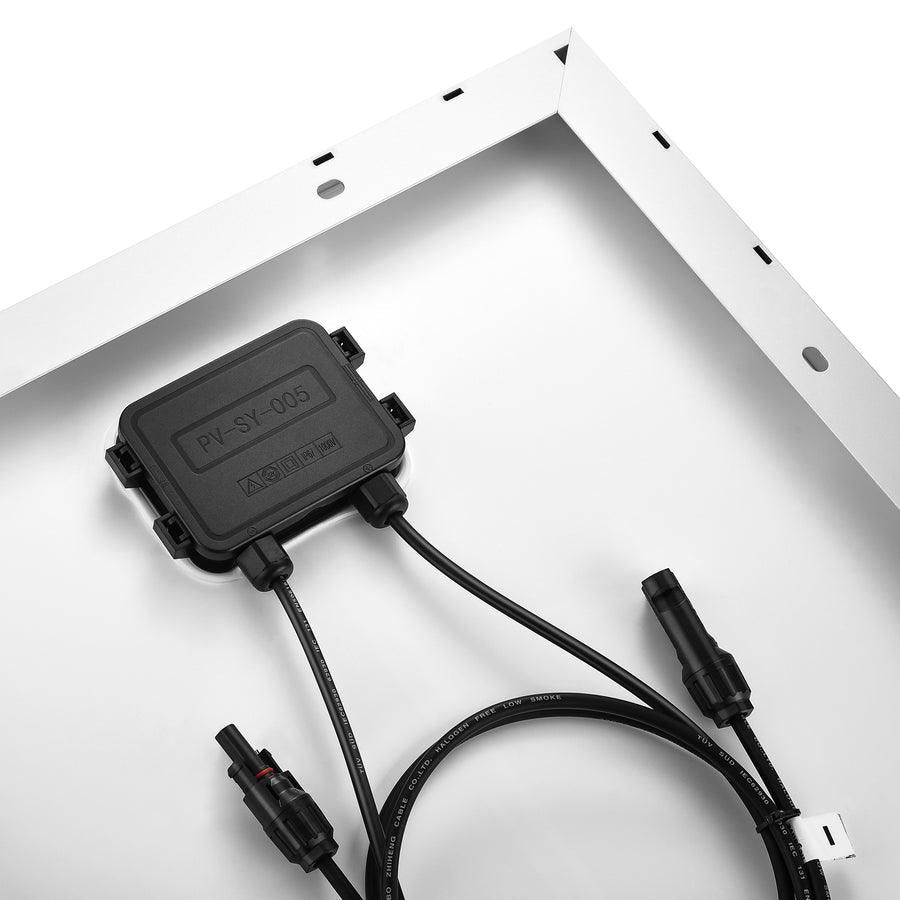

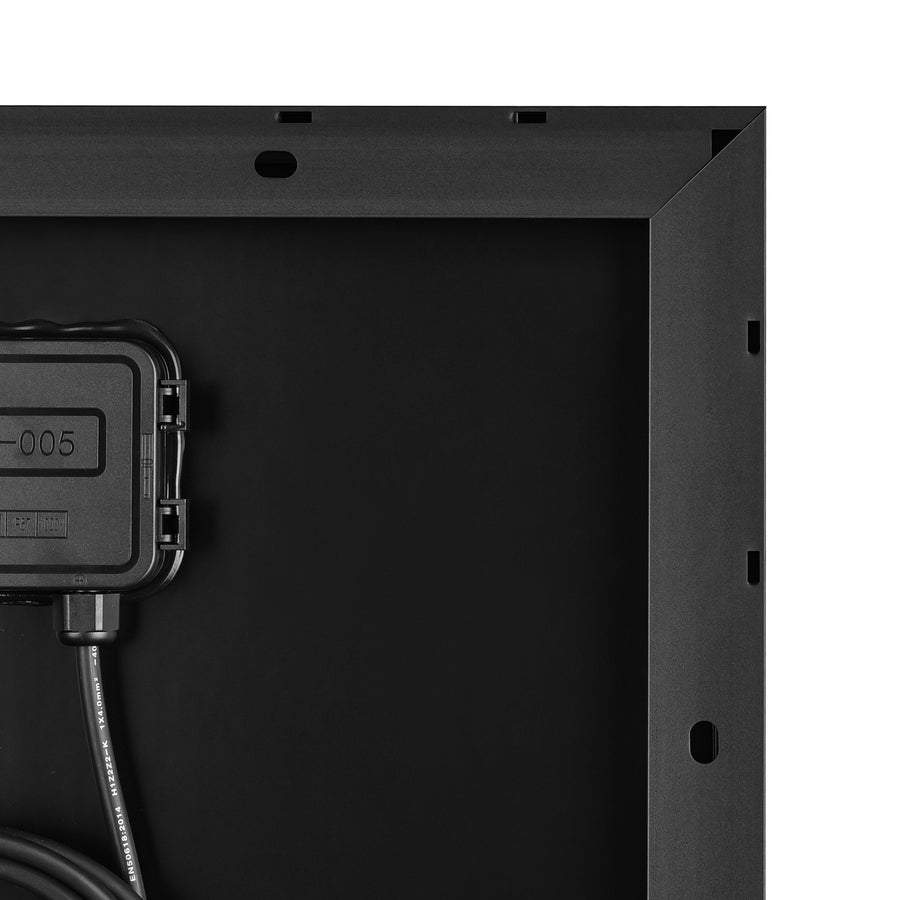

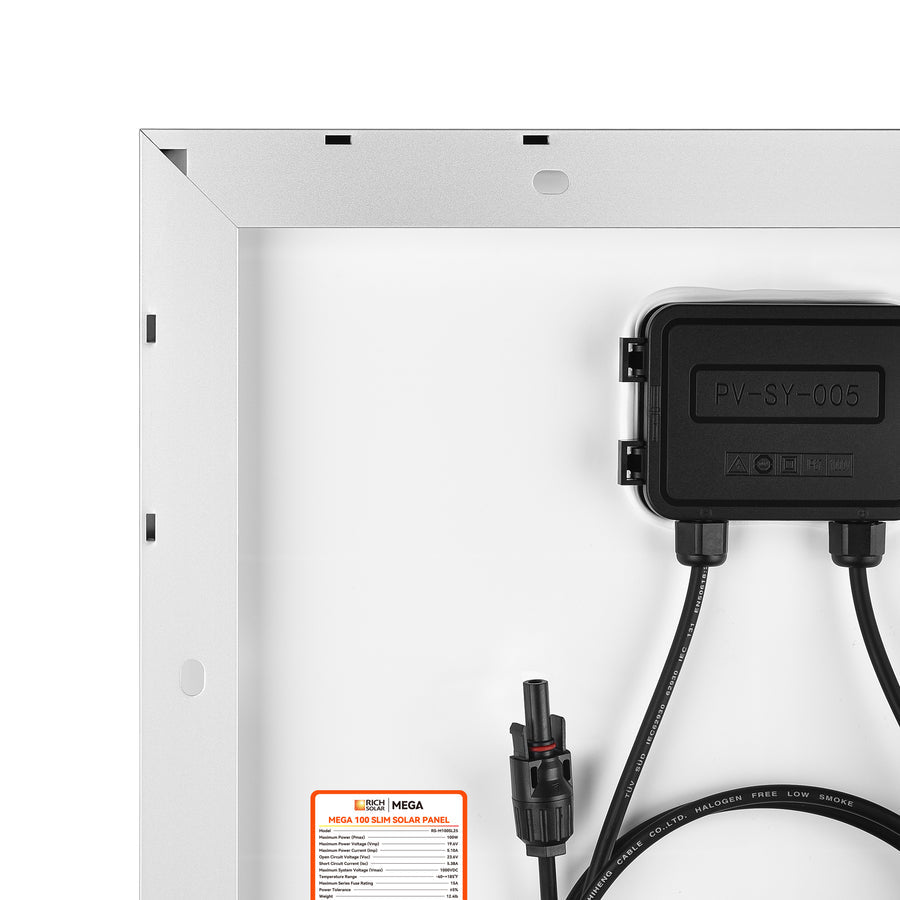

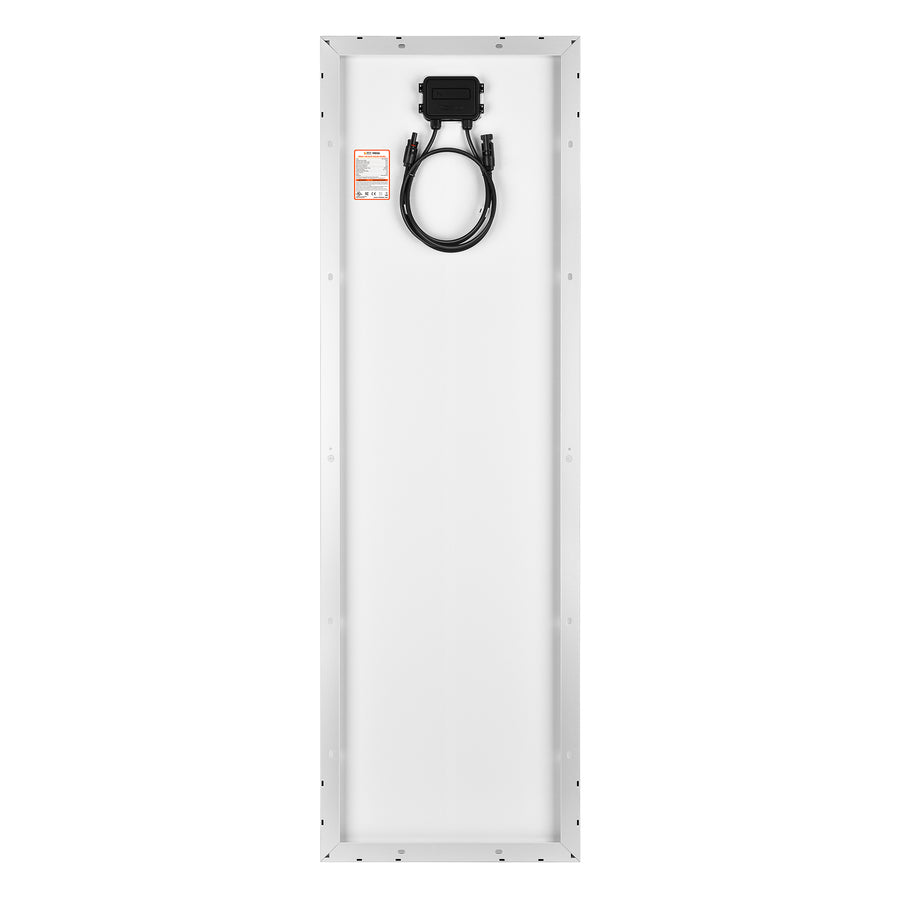

Built-in Components

  • Panel Leads (Pair): 12 AWG, 3 ft each
  • IP67-rated waterproof junction box
  • IP67-rated waterproof solar connectors

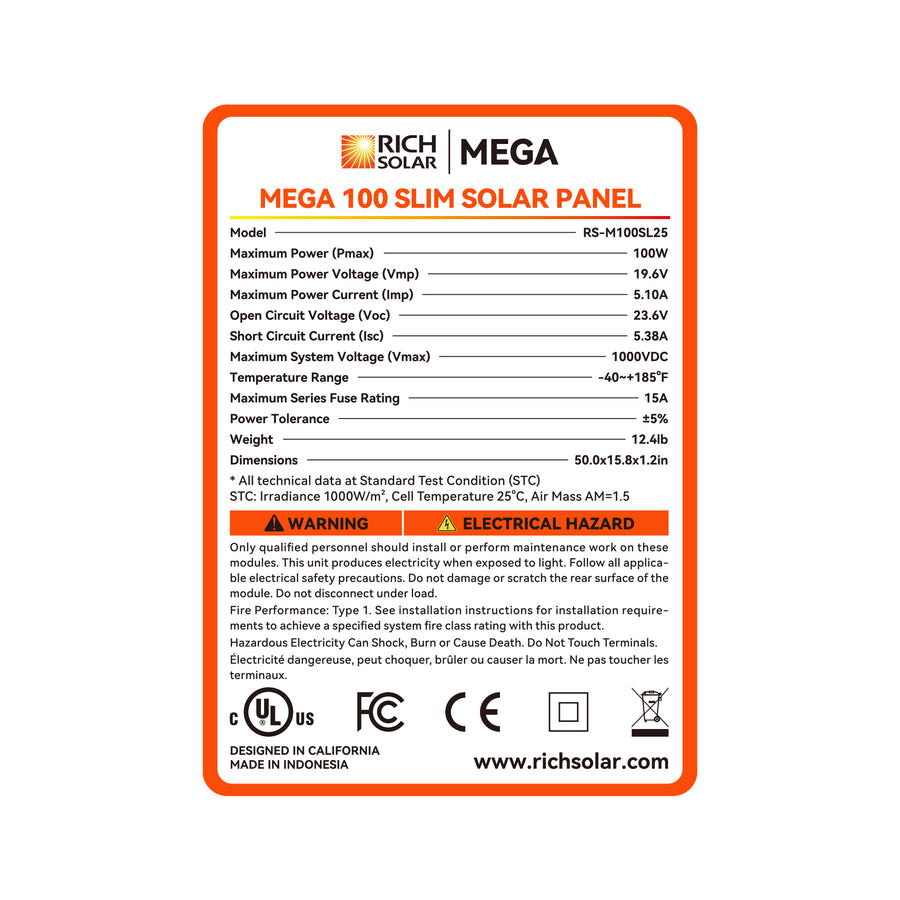

Specifications

  • Maximum Power(Pmax): 100W
  • Maximum Power Voltage(Vmp): 19.6V
  • Maximum Power Current(Imp): 5.1A
  • Open Circuit Voltage(Voc): 23.6V
  • Short Circuit Current(Isc): 5.38A
  • Maximum System Voltage(Vmax): 1000VDC
  • Maximum Series Fuse Rating: 15A
  • Weight: 12.4 lb

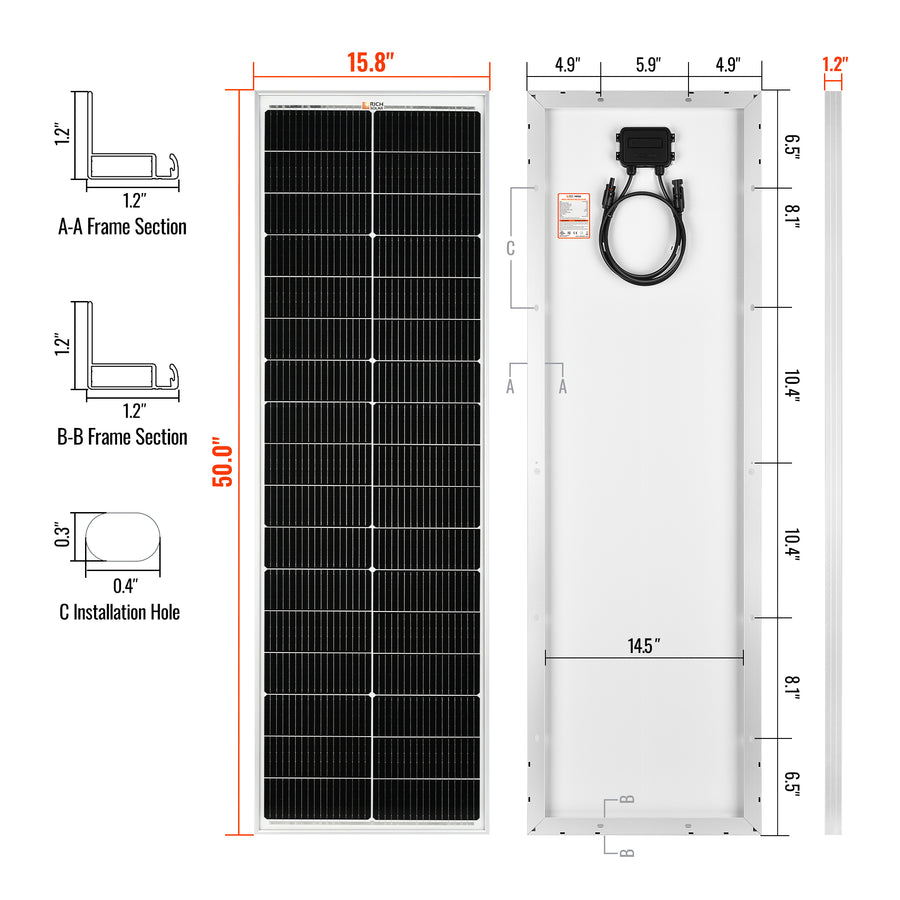

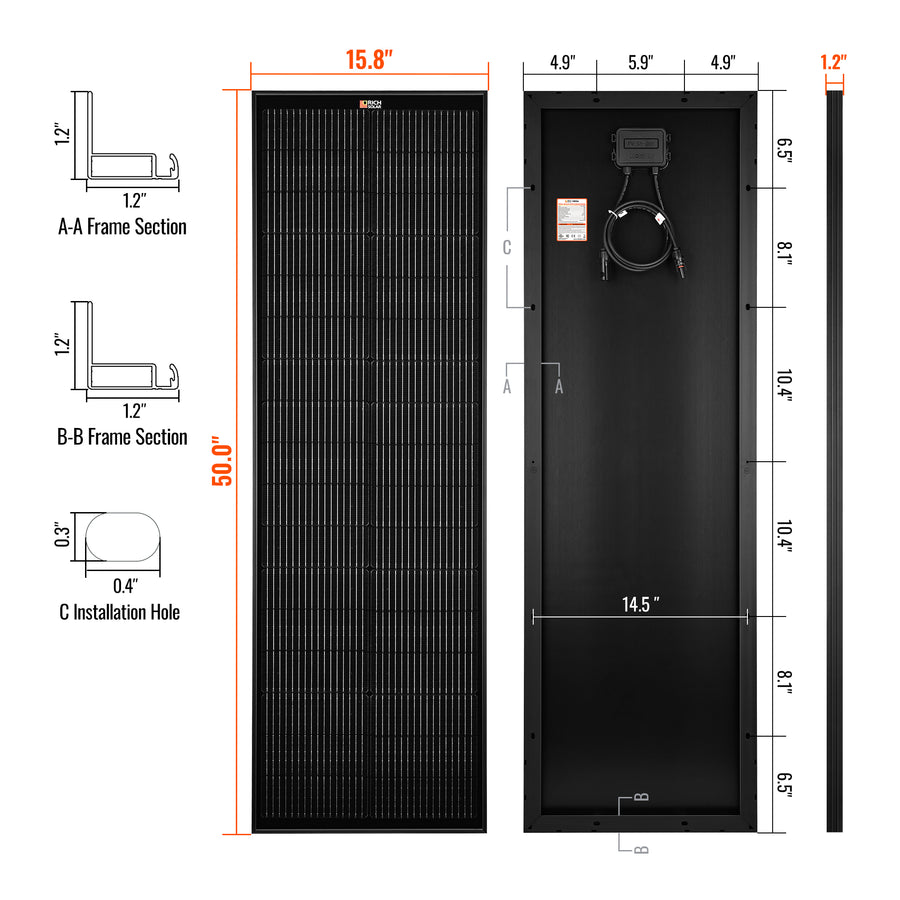

  • Dimensions: 50.0 x 15.8 x 1.2 in
