Inline Fuse Holder with 10A 15A 20A 30A Fuse

Regular price $15.99
Sale price $15.99 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
Size:
This is a pre order item. We will ship it when it comes in stock.

Features
  • Fuse Can Replace

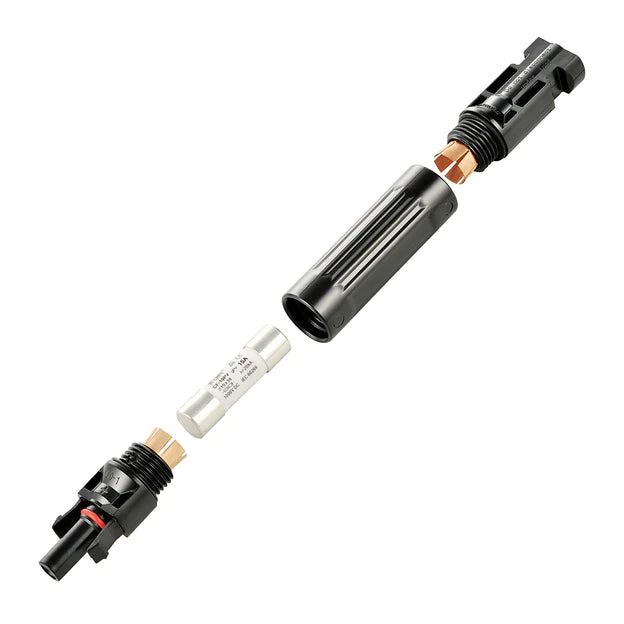

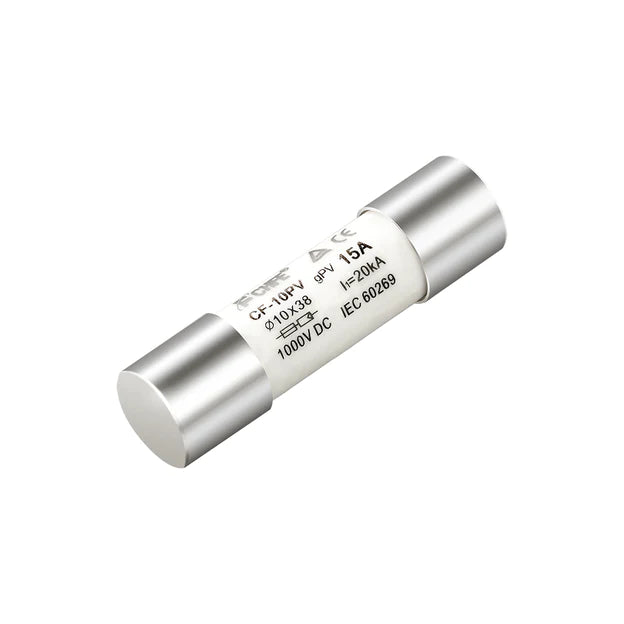

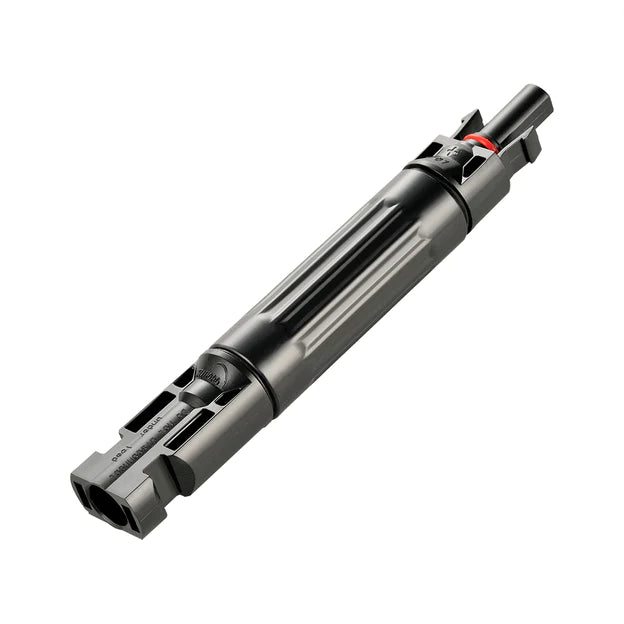

  • 10A/15A/20A/30A fuse embedded into a waterproof fuse holder, solar connector lead on each end.
  • Compatible with PV cables with different insulation diameters.
  • Designed for a wide range of DC applications.
  • Simple plug-and-play.
  • Auto-lock equipment of male and female points render connections easy and reliable.
  • Waterproof fuse holder - IP67 Class Protection.
  • Insulation material PPO.
  • High current-carrying capacity.
  • Prevent large currents from damaging the solar panels.
  • Designed to provide complete single circuit protection to your solar power array.
  • Protection Class II
  • Connector adopts touch and insertion of reed with inner-knob type.
  • Purchase this product for extra protection on your system.
Specifications
  • Rated Current: 10A/15A/20A/30A
  • Degree of Protection: IP2*/IP67
  • Rated Voltage: 1000 V DC
  • Flame Class: UL94-V0
  • Test Voltage: 6000V (50Hz,1 min)
  • Safety Class: II
  • Overvoltage Category: CATIII
  • Suitable Connector: Solar Connector
  • Contact Resistance of Plug Connector: 1mΩ
  • Insertion Force / Withdrawal Force: ≤50N / ≥50N
  • Contact Material: Copper, Silver Plated
  • Insulation Material: PPO
  • Temperature Range: -40 to +125°C
