Product details

Ford Transit Roof Rack – The Strongest & Most Versatile Rack

Upgrade your van build with the Ford Transit Roof Rack from Unaka Gear Co. Designed for strength, versatility, and ease of installation, this rack offers ultimate flexibility, allowing you to position the crossbars exactly where you need them. Available in Standard, Premium, Premium + Light Bar Capability, and Premium Explorist.Life options, our racks cater to every builder’s needs while providing seamless capability for solar panels and lighting accessories.

Looking to have this installed? View our installation rates here.

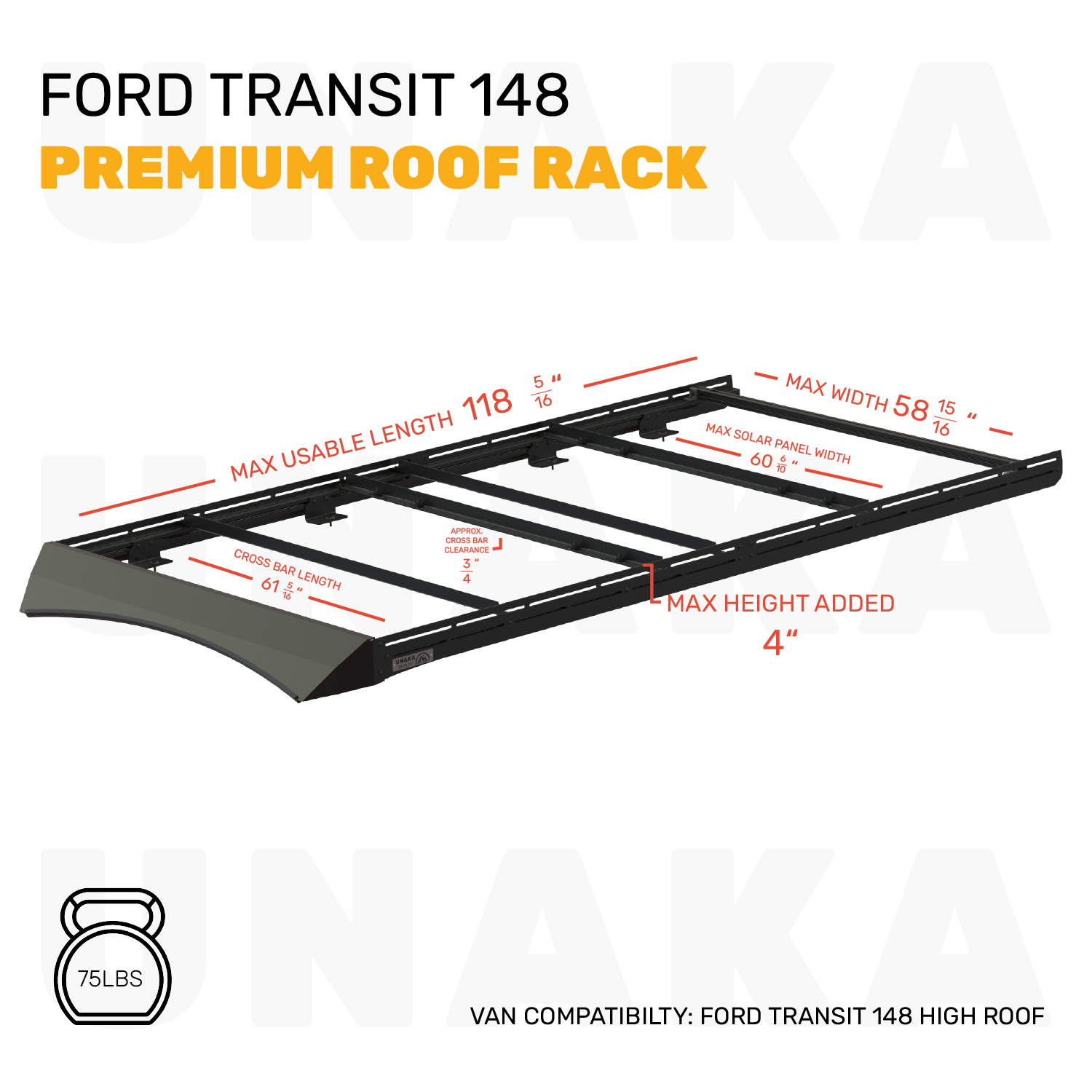

*3d model shown: 148EXT Light Bar Rack

ADVANTAGES
  • Modular & Adjustable – Position crossbars exactly where you need them.
  • Durable Construction – Built on a 15 series 8020 aluminum foundation, with an added laser-cut aluminum shell in the Premium and Premium + Light Bar Capability models.
  • Wind Fairing Options – Acrylic fairing for Standard, aluminum fairing for Premium, Premium + Light Bar Capability & Explorist.Life.
  • Solar Panel Capability – Supports a maximum panel width of 60.6" and comes with mounting hardware for two solar panels.
  • Light Bar Capability – Designed to accommodate a light bar up to 50” with an easy mounting solution (Premium + Light Bar Capability model only).
  • Complete Installation Kit – Includes all brackets and stainless steel hardware required for installation, plus mounting hardware for two solar panels.
SPECS & KIT CONTENTS

Standard Ford Transit Roof Rack

Construction: 15 series 8020 foundation
Light Bar Capability: No

  • Roof rack + acrylic wind fairing
  • 4 ultralight 15 series 8020 crossbars
  • All brackets and stainless steel hardware
  • Flush mount solar panel brackets for two 200W solar panels

Premium Ford Transit Roof Rack

Construction: 15 series 8020 foundation + laser-cut aluminum shell
Light Bar Capability: No

  • Roof rack + aluminum wind fairing
  • 4 L-shaped aluminum crossbars for mounting two 200W solar panels
  • 1 ultralight 15 series 8020 crossbar for the rear of the rack
  • All brackets and stainless steel hardware

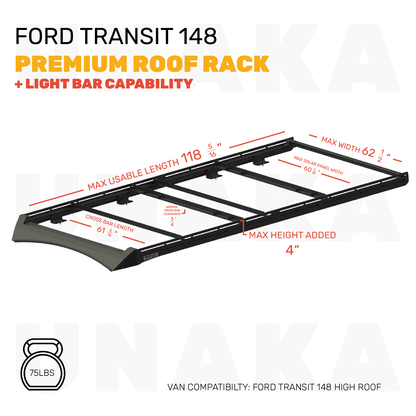

Premium + Light Bar Capability Ford Transit Roof Rack

Construction: 15 series 8020 foundation + laser-cut aluminum shell
Light Bar Capability: Yes, supports up to a 50” light bar

  • Roof rack + aluminum wind fairing
  • 4 L-shaped aluminum crossbars for mounting two 200W solar panels
  • 1 ultralight 15 series 8020 crossbar for the rear of the rack
  • All brackets and stainless steel hardware

Premium Explorist.Life Ford Transit Roof Rack

Construction: 15 series 8020 foundation + laser-cut aluminum shell
Light Bar Capability: No

  • Roof rack + aluminum wind fairing
  • 4 L-shaped aluminum crossbars for mounting two 200W solar panels
  • 2 L-shaped aluminum crossbars for mounting solar panels around a Maxxfan
  • 2 L-shaped aluminum crossbars for mounting around an AC unit
  • 1 ultralight 15 series 8020 crossbar for the rear of the rack
  • All brackets and stainless steel hardware
STANDARD vs. PREMIUM

The Standard Rack provides a reliable, solid foundation at a great price. It features 15-series 8020 with an acrylic wind fairing. The 8020 comes in a standard black anodized finish, which can show wear over time, but rest assured, a few scratches won’t impact the rack's strength. The Standard Rack is a dependable, budget-friendly choice for those looking for simplicity and reliability.

The Premium Rack takes the strong foundation of the Standard Rack and adds stealthy side plates that cover the 8020 side rails, giving your rack a sleek, streamlined look. It also features a reinforced single-piece welded aluminum wind fairing, which is stronger and easier to install than the acrylic version. The 8020 bars are upgraded to a black powder-coated finish, offering better scratch resistance and long-lasting durability. The Premium Rack also includes double T-nuts that are pre-measured for easier installation, eliminating the chance of T-nuts flopping around or falling off during setup. Loctite is pre-applied to all necessary bolts, saving time and ensuring a more secure fit.

Additionally, the Premium Rack features internal channel splice plates for added strength and stability, minimizing interference with crossbars or solar panels. Drop slots on the 8020 bars allow for easy additions down the road. The rack now has a wider configuration, offering more flexibility for panels, decking, and customizations, while allowing for quicker and simpler installation.

Everything ships in a single box with upgraded packaging to ensure safe, intact, and timely delivery. The Premium Rack is the ultimate choice for those who want the best in durability, design, and ease of use, elevating your van setup to the next level.

COMPATIBILITY
  • 2015+ Ford Transit High Roof

2015+ Ford Transit 148 Medium Roof
