Product details

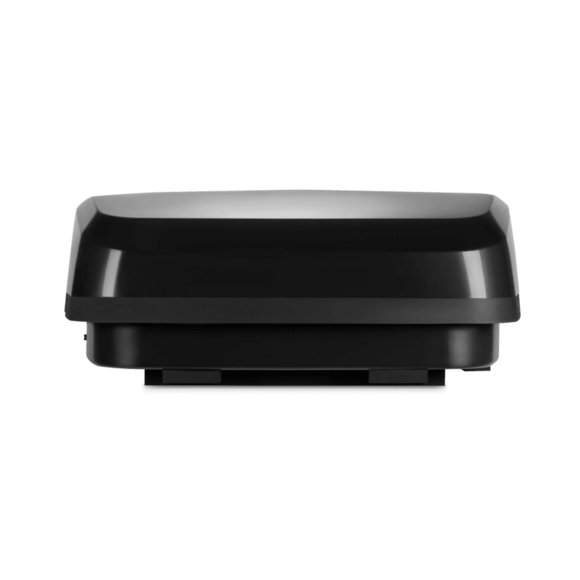

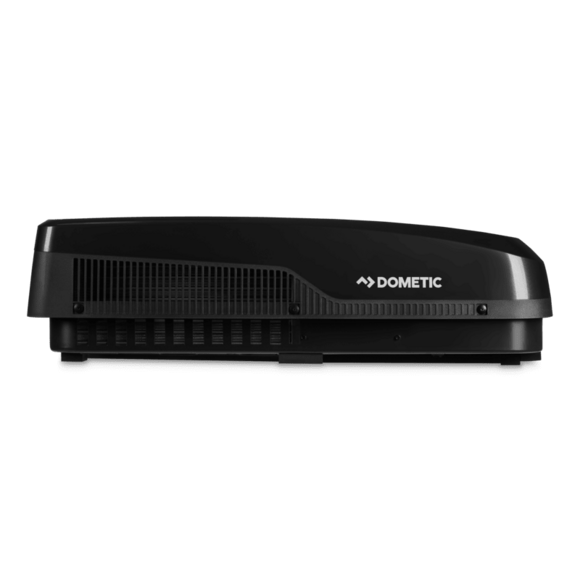

Dometic FreshJet 5 Series Mechanical 15K BTU Low-Profile Air Conditioner w/ Heat Pump - Black

Required for Installation
Hardware is required for this unit to be fully operational, please ensure that you select a hardware to complement your selection

CDADB, UNIV DUS PW HP MECH, FOR FJX
Air Distribution Box (ADB) - For use only with FreshJet 5 - 15K Mechanical Heat Pump Air Conditioner Models


15,000 BTU - Rooftop Low Profile Air Conditioner with Heat Pump and R32 Refrigerant - No Pre-installed controls - Non-Ducted application ONLY: air distribution box required (PACKAGE CANNOT BE SHIPPED VIA PARCEL) - Black

FJX5,15KHP,MECH,LOWPRO,BLK,R32
FreshJet 5 is Dometic’s low-profile rooftop air conditioner designed as a direct Penguin II replacement. The 15,000 BTU model delivers powerful cooling in a compact footprint and is available in both mechanical and electronic configurations. With built-in hard start, quieter performance, a reinforced steel base, and options with or without a heat pump, it’s ideal for new RV builds, universal replacements, and upgrades—delivering modern comfort without changing the fit.

  • Low-Profile Design (10.5" Installed Height)
    More Roof Clearance
  • Quieter Performance
    Reduce cabin noise by up to 9 DB than Penguin II
  • Direct replacement for Penguin II
Capacity
15000
Cool Only or Heat Pump
Heat Pump
Color
Black
Thermostat Zones
Single or Multi
Refrigerant Type
R32
ADVANTAGES
  • Direct replacement for Penguin II
  • Same installed 10.5" low profile fit height with updated FreshJet family look and feel
  • Built-in hard start for reliable startups
  • Reinforced steel base resists road shock
  • Backwards compatible with Penguin II models
  • High performance motor and fans with fixed speed compressor
  • Coated evaporator coils for improved performance and durability
  • R32 refrigerant- higher performance with less charge needed
  • Includes heat pump for added heating
SPECS & KIT CONTENTS

General
SKU number 9620015928
Model FJX5557MHP
Model on label FJX5557MHPBKCS
Scope of delivery 1 Air-conditioner, 1 warranty card
Cool Only or Heat Pump Heat Pump
Product Description 15,000 BTU - Rooftop Low Profile Air Conditioner with Heat Pump and R32 Refrigerant - No Pre-installed controls - Non-Ducted application ONLY: air distribution box required (PACKAGE CANNOT BE SHIPPED VIA PARCEL) - Black
Thermostat Zones Single or Multi
Dimensions
Dimensions product depth 40.40 "
Dimensions product height 11.10 "
Dimensions product width 29.22 "
Net weight 94.59 lbs
Electrical
Input voltage (AC) 115 V
Input frequency 60 Hz
Performance
Cooling Capacity 15000 BTU
Additional
Color Black
Certificates CSA
Logistics
EAN-13 6975399594345
Dimensions parcel depth 41.73 "
Dimensions parcel height 12.40 "
Dimensions parcel width 29.72 "
Parcel weight 105.62 lbs
