Dometic CoolAir RTX Installation Kit

This universal installation kit enables the easy installation of RTX and SPX-T CoolAir climate control units. Uses existing fastening points.

 SKU number 9100300152

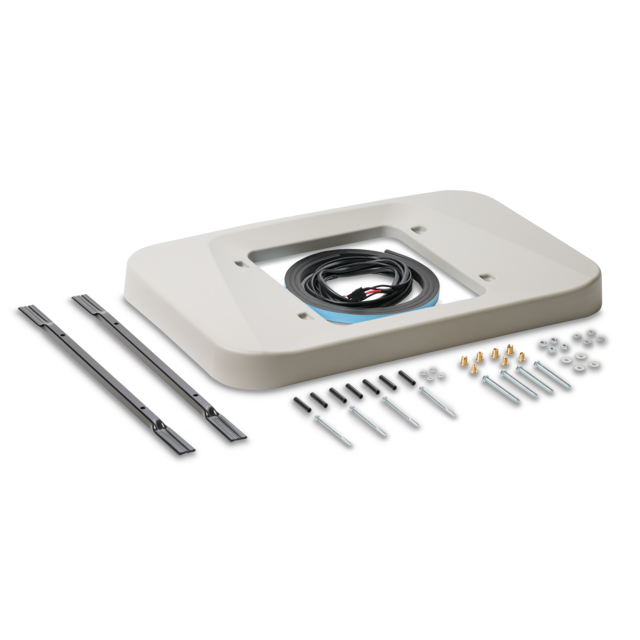

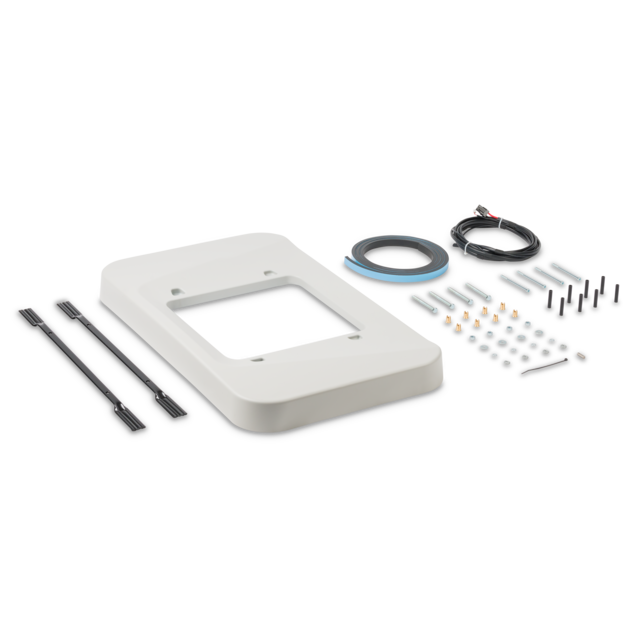

Kit Includes:

• Thread insert with flange M8 Qty. 4
• Thread insert with flange M6 Qty.  4
• Nut M8 Qty. 4
• Fastening holder Qty. 2
• Washer 8.5 x 20 Qty. 4
• Spring washer M8 Qty. 4
• Hex screw M8 x 100 Qty. 4
• Spacer sleeve L = 48 mm, ∅ 10 mm Qty. 8

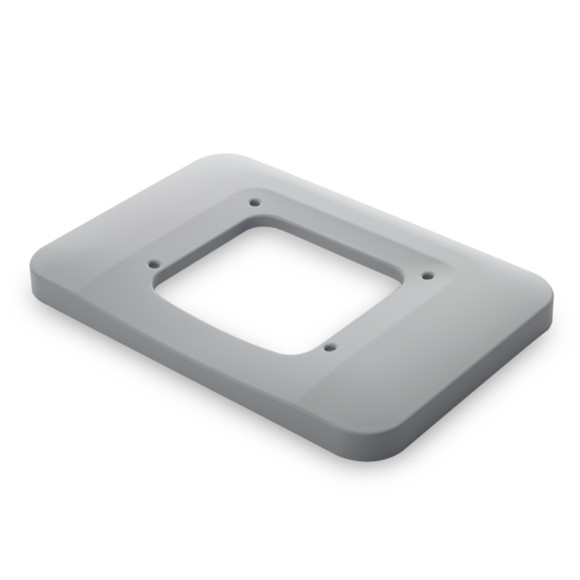

• Cover frame 1 Washer M6 Qty. 4
• Allen screw with cylindrical head M6 x 110 Qty. 4
• 2.7 m insulating tape (profile: 10 x 20 mm) Qty. 1
• Connection cable 6 mm² x 4 m Qty. 1
• Cable binder Qty. 1
• Maxi Fuse 80 A Qty. 1
• Maxi Fuse holder (80 A) Qty. 1
• Ring terminal 21.2 mm², M8 Qty. 1
• Ring terminal 21.2 mm², M10 Qty. 1
• Joint connector 21.2 mm² Qty. 1
• Blade fuse, 2 A Qty. 1
• Fuse holder (2 A) Qty. 1
• Ring terminal 0.5 mm², M8 Qty. 2
• Joint connector 0.5 mm² Qty. 1
• 1/4" hexagon bit Qty.
• Installation manual Qty. 1
• Template (integrated in the packaging) Qty. 1
