75W 12V Monocrystalline Solar Panel

Newpowa's 75W 12V Monocrystalline High-efficiency Solar Panel is ideal for bringing power to small electronics while away from the grid. It is commonly used in RV, marine, gate opener, boats, traffic signals and many other off-grid applications.

Key Features

• 75W/12V Monocrystalline high-efficiency solar panel
• High-performance cells encapsulated in EVA (ethylene-vinyl-acetate)
• Nominal 12V DC for standard output
• Heavy-duty anodized frame with pre-drilled holes for mounting
• Rugged design to withstand high winds (2400Pa), hail and snow load (5400Pa)
• High-transparent, low iron tempered glass
• Durable TPT back sheet - dissipates heat to optimize performance and enhance longevity

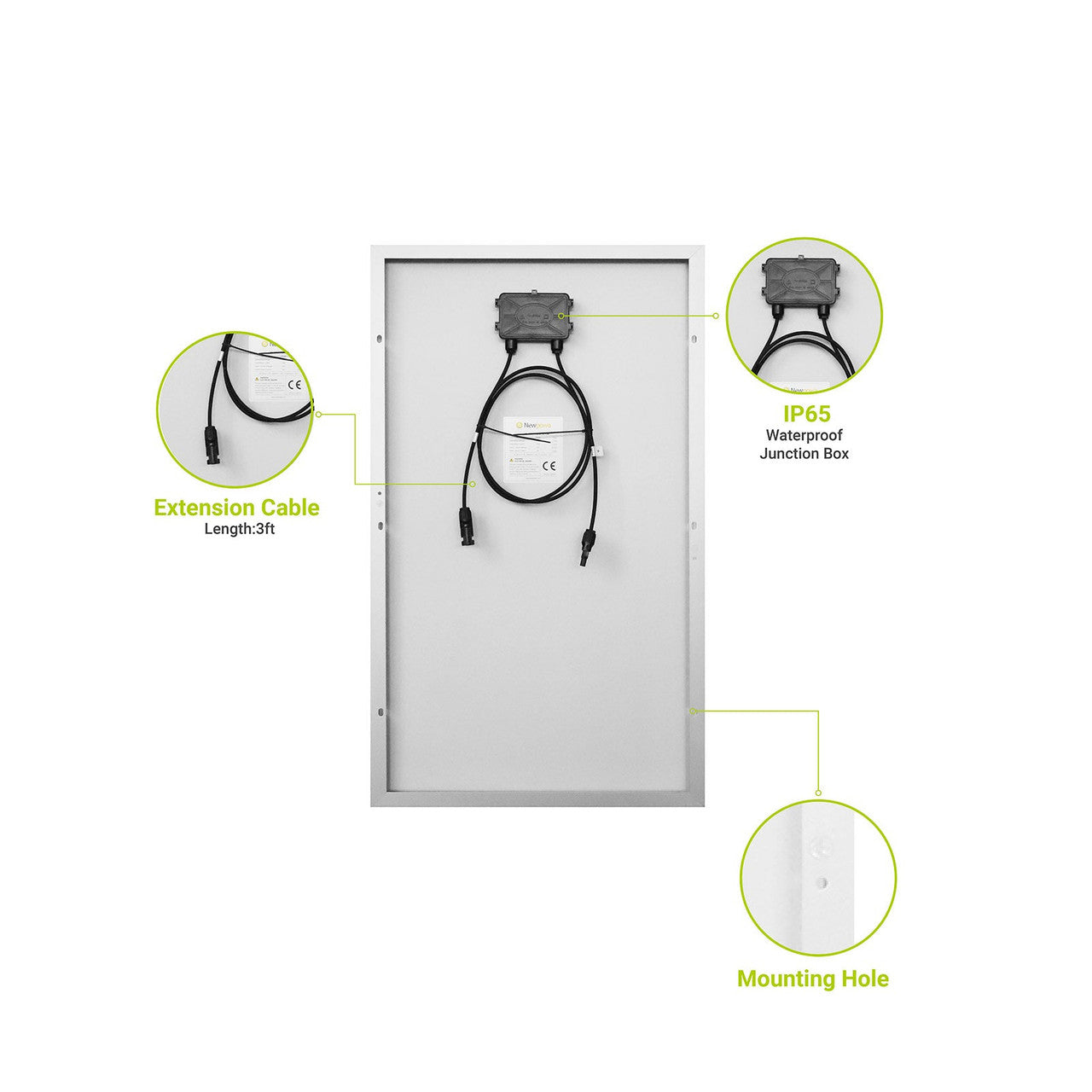

• Pre-attached 3ft wire with connectors (M/F)

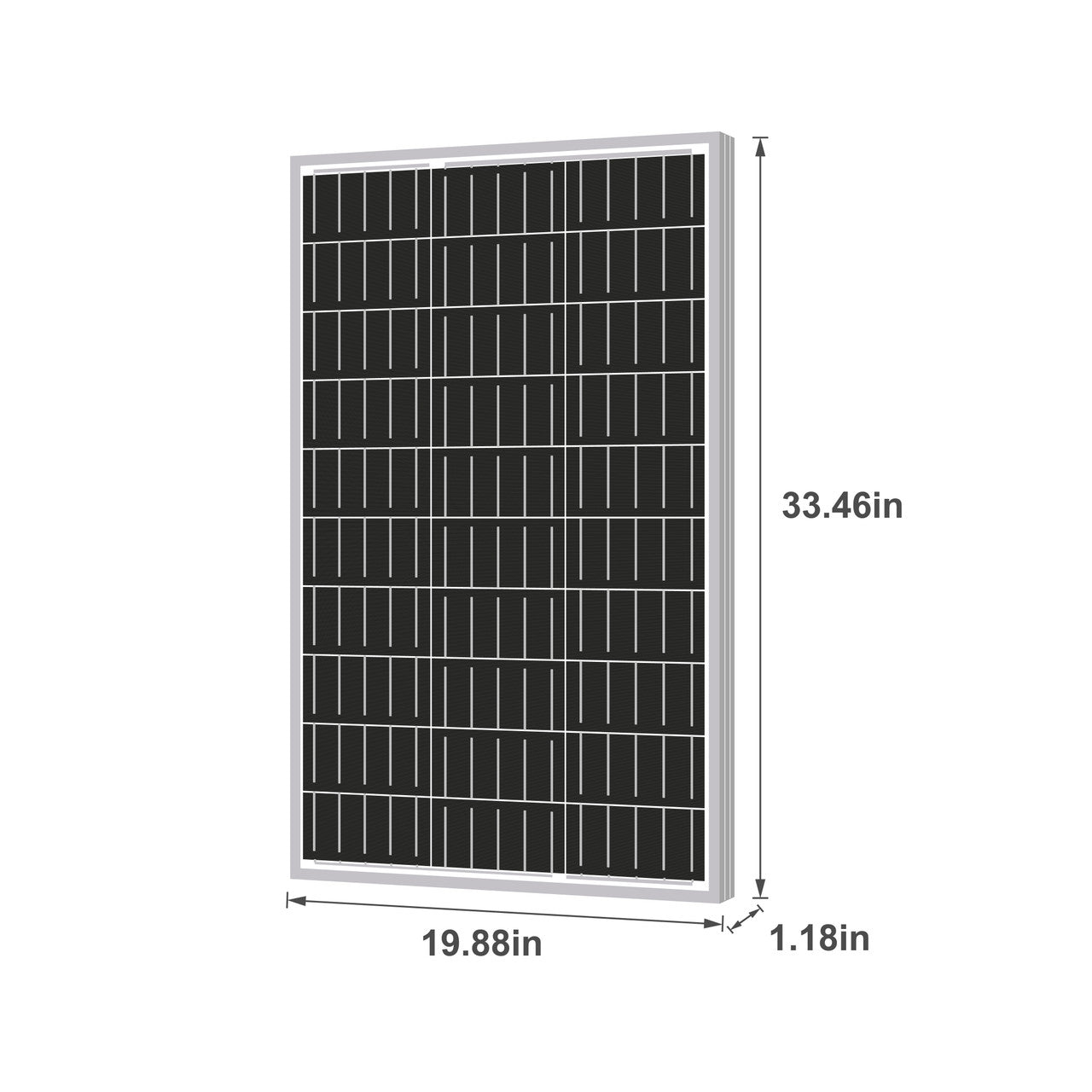

• Product dimensions: 850 x 505 x 30mm (33.46 x 19.88 x 1.18 in)
• Compatible mount brackets (sold separately): NPB-UZ, NPB-101P

Tech & Specs

• Product CodeNPA75S-12H
• Maximum power (Pmax)75W
• Voltage at Pmax (Vmp)17.0V
• Current at Pmax (Imp)4.41A
• Open-circuit voltage (Voc)20.23V
• Short-circuit current (Isc)4.68A
• Power tolerance-(80±10)mV/°C

• Temperature coefficient of Isc(0.065±0.015)%/ °C
• Temperature coefficient of power-(0.5±0.05)%/ °C
• NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s)47±2°C
• Operating temperature40°C to 85°C
• Maximum system voltage1000V DC
• Power tolerance± 3%
