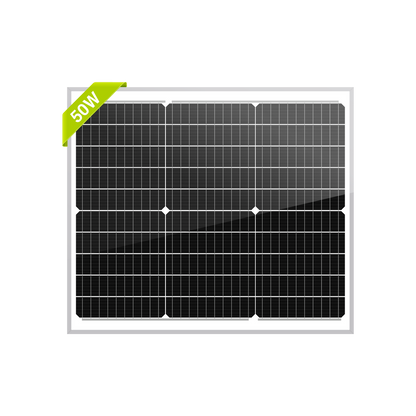

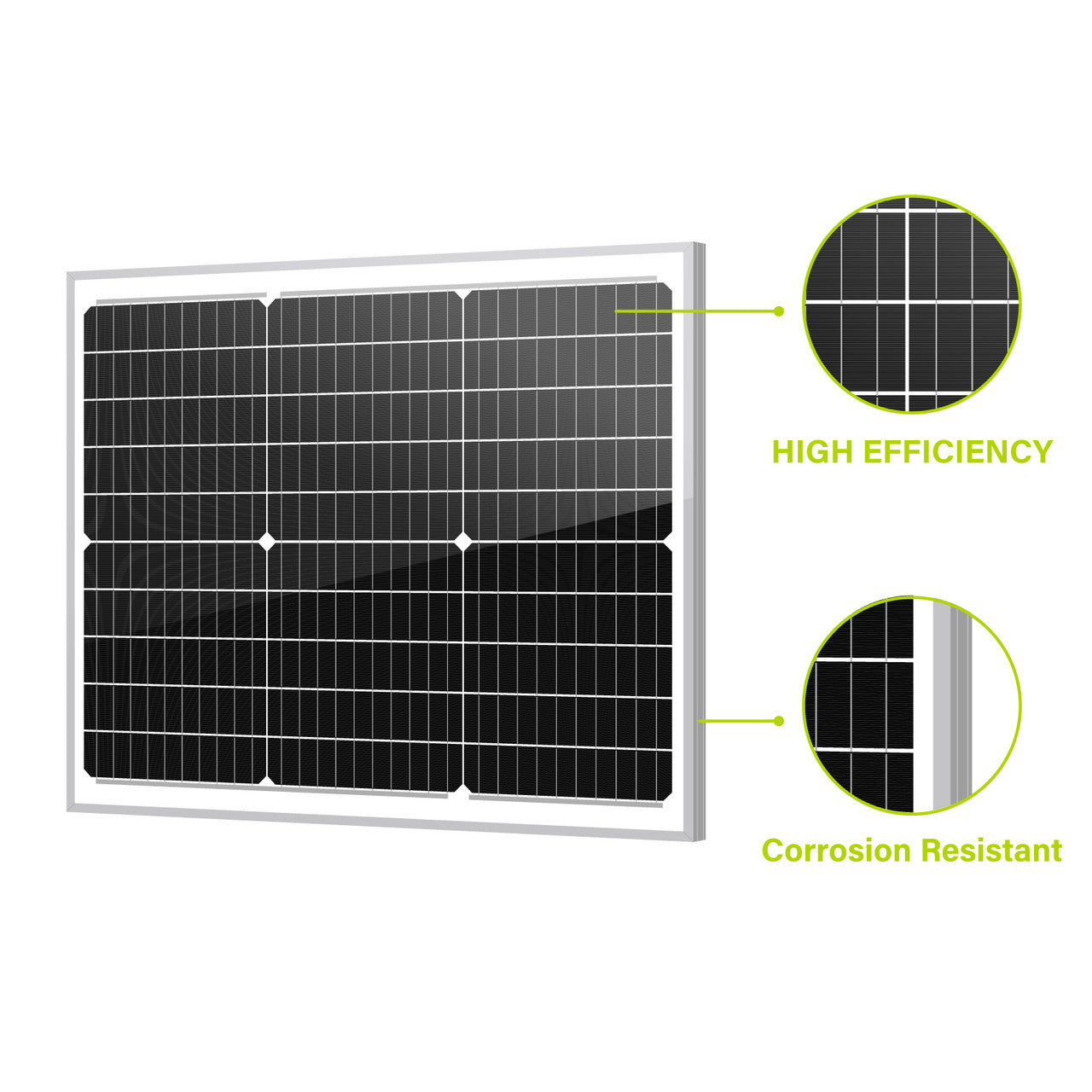

50W 12V Monocrystalline Solar Panel Version 2

Newpowa's New 50W 12V Monocrystalline High-efficiency Solar Panel is ideal for bringing power to small electronics while away from the grid. It is commonly used in RV, marine, gate opener, and many other small applications.

New design:

Smaller in size, same output, higher efficiency compared with other brands.

Key Features

• 50W/12V Monocrystalline high-efficiency solar panel
• High-performance cells encapsulated in EVA (ethylene-vinyl-acetate)
• Nominal 12V DC for standard output
• Heavy-duty anodized frame with pre-drilled holes for mounting
• Rugged design to withstand high winds (2400Pa), hail and snow load (5400Pa)
• High-transparent, low iron tempered glass
• Durable TPT back sheet - dissipates heat to insure better panel performance and lifespan

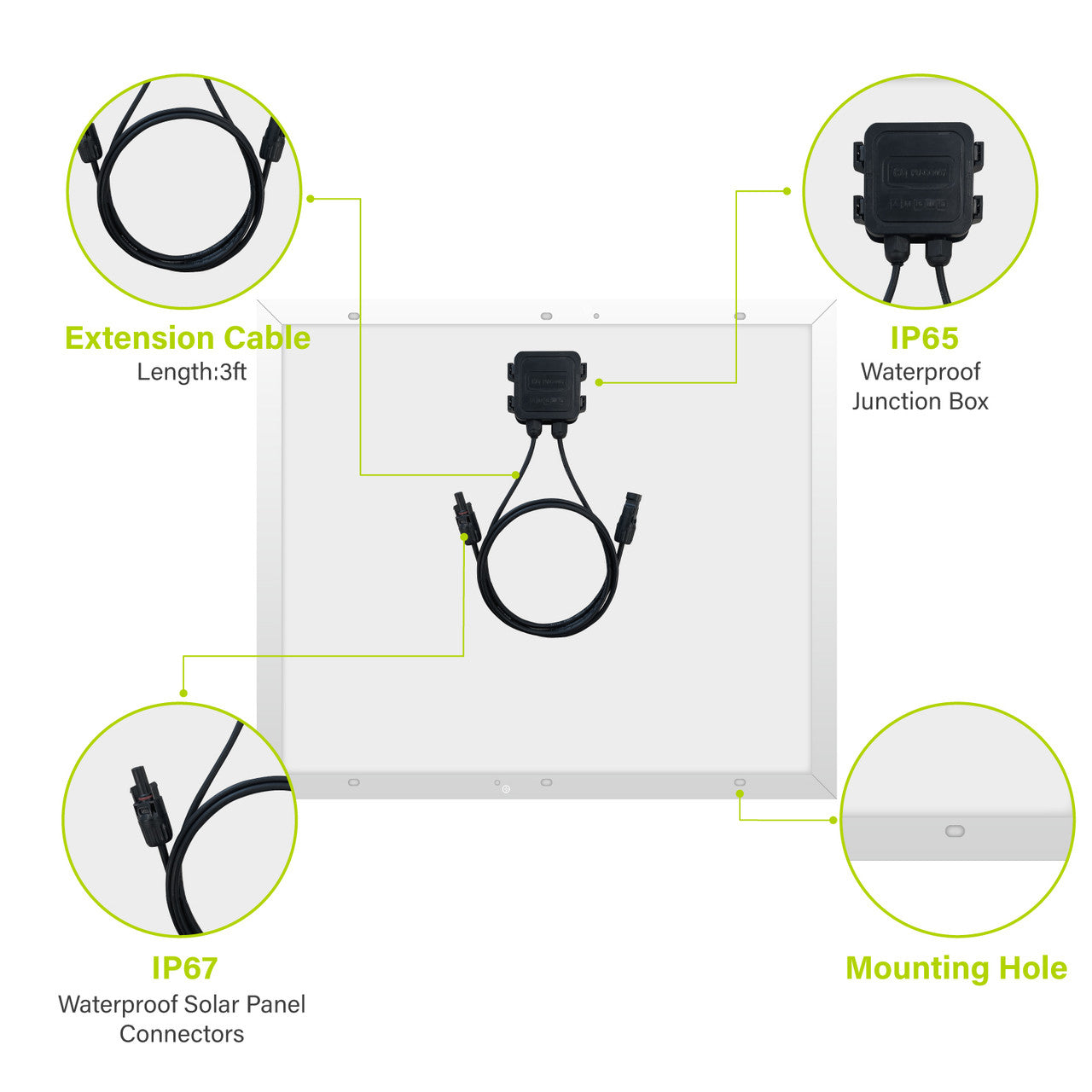

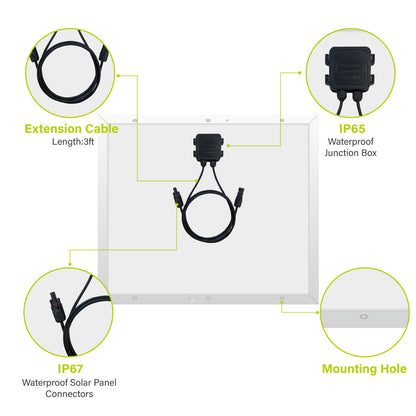

• Pre-attached 3ft wire with connectors

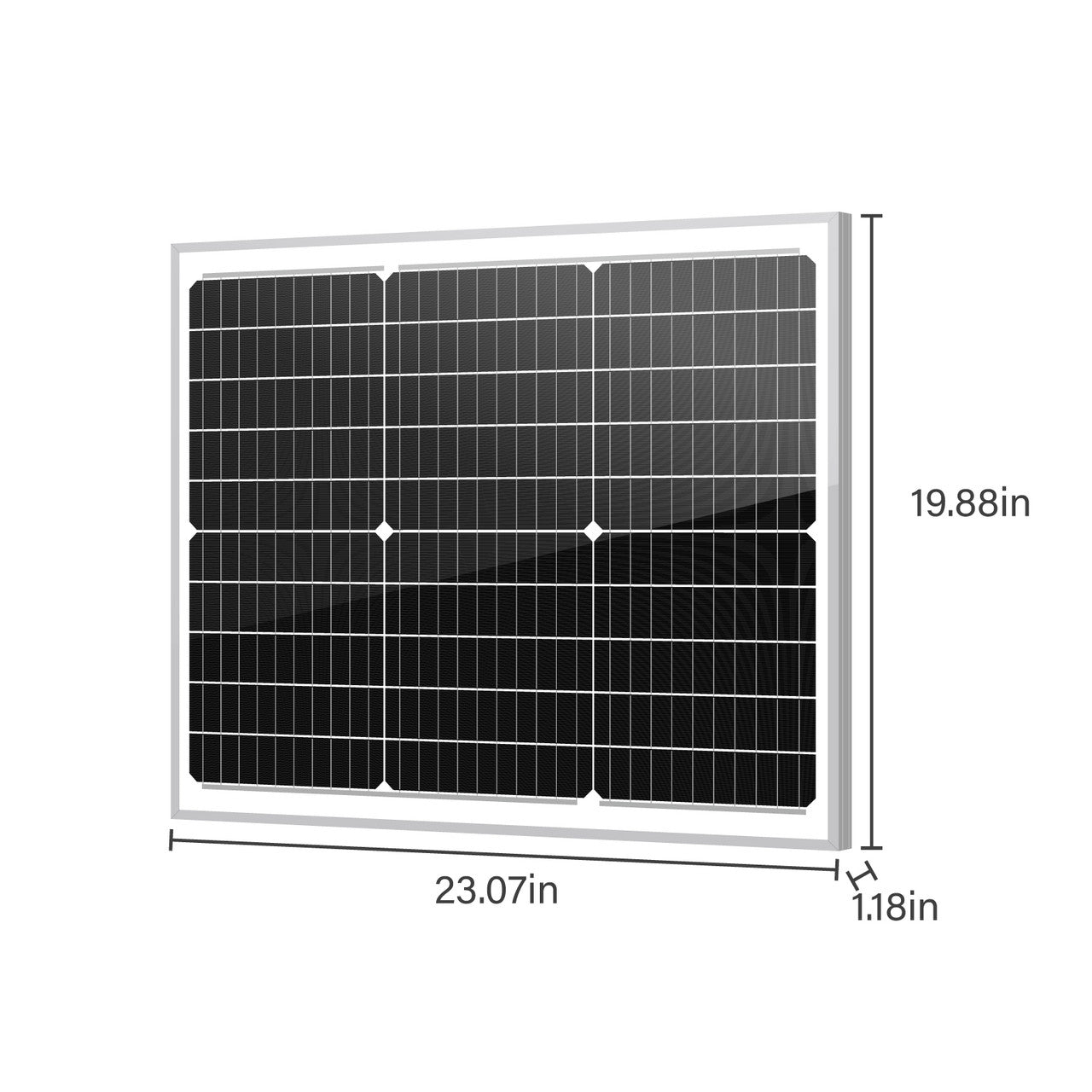

• Product dimensions: 586 x 505 x 30mm (23.07 x 19.88 x 1.18 in)
• Compatible mount brackets (sold separately): NPB-UZ, NPB-UV, NPB-50P, NPB-101P, NPB-100T

Tech & Specs

• Product CodeNPA50S-12J (050041245A)
• Maximum power (Pmax)50W
• Voltage at Pmax (Vmp)17.29V
• Current at Pmax (Imp)2.90A
• Open-circuit voltage (Voc)20.29V
• Short-circuit current (Isc)3.09A
• Temperature coefficient of Voc-(80±10)mV/°C

• Temperature coefficient of Isc(0.065±0.015)%/ °C
• Temperature coefficient of power-(0.5±0.05)%/ °C
• NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s)47±2°C
• Operating temperature-40°C to 85°C
• Maximum system voltage1000V DC
• Power tolerance± 3%

Download Data Sheet
