NPA180S-12J

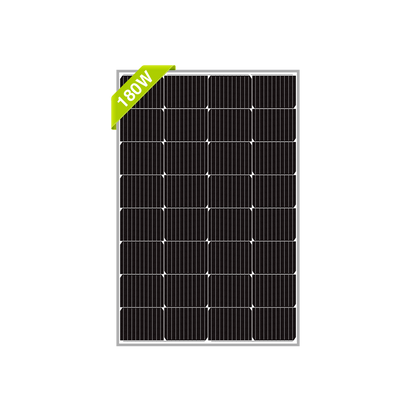

180W 12V Monocrystalline Solar Panel
$193.50
Pairs well with
180W 12V Monocrystalline Solar Panel
$193.50
Product details
Newpowa's New 180W 12V Monocrystalline High-Efficiency Solar Panel is commonly paired with RV, marine, camping, traffic signals, and various off-grid applications.
Key Features

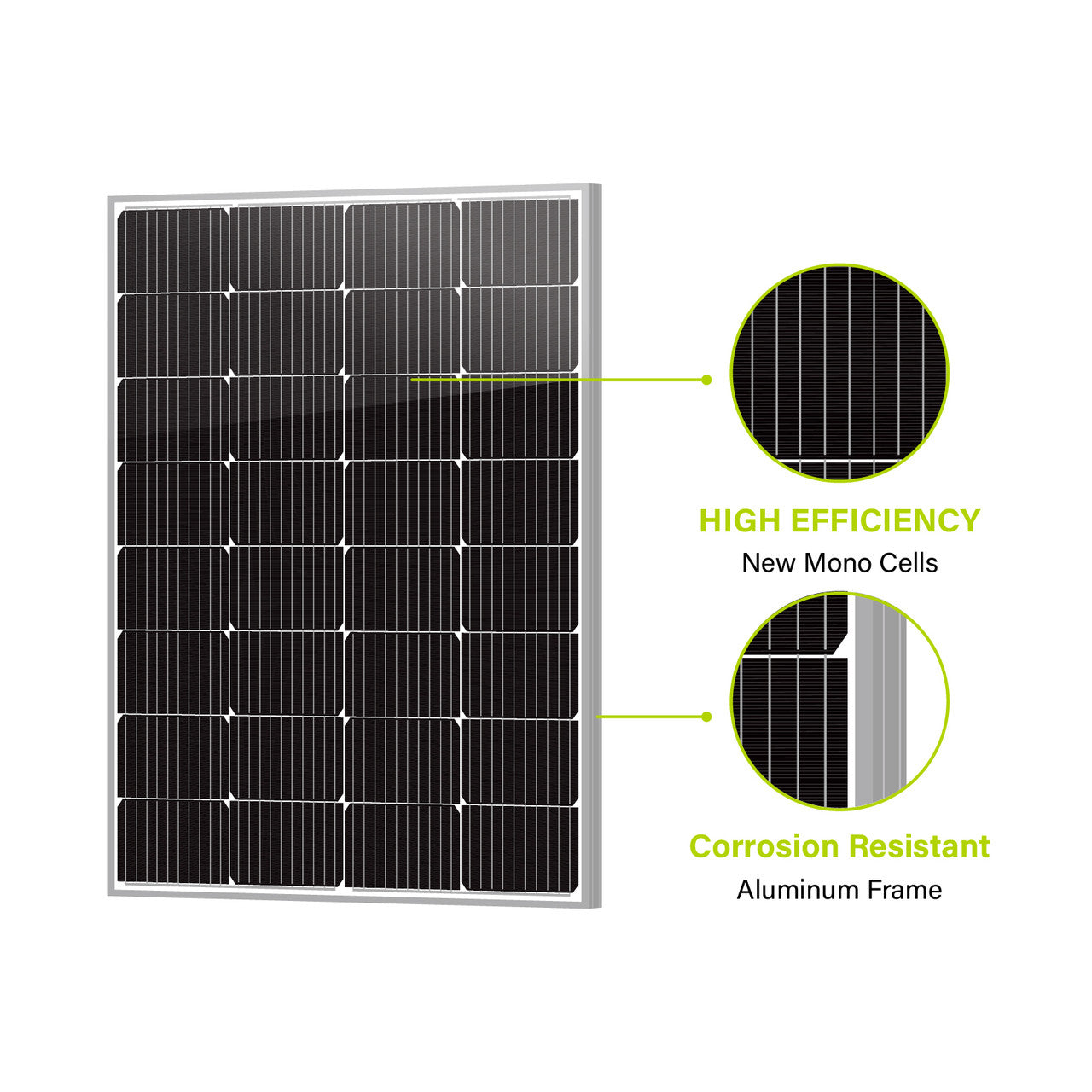

- 180W/12V Monocrystalline high-efficiency solar panel
- High-performance cells encapsulated in EVA (ethylene-vinyl-acetate)
- Nominal 12V DC for standard output
- Heavy-duty anodized frame with pre-drilled holes for mounting
- Rugged design to withstand high winds (2400Pa), hail &snow load (5400Pa)
- High-transparent, low iron tempered glass
- Durable TPT backsheet - dissipates heat to optimize performance and enhance longevity

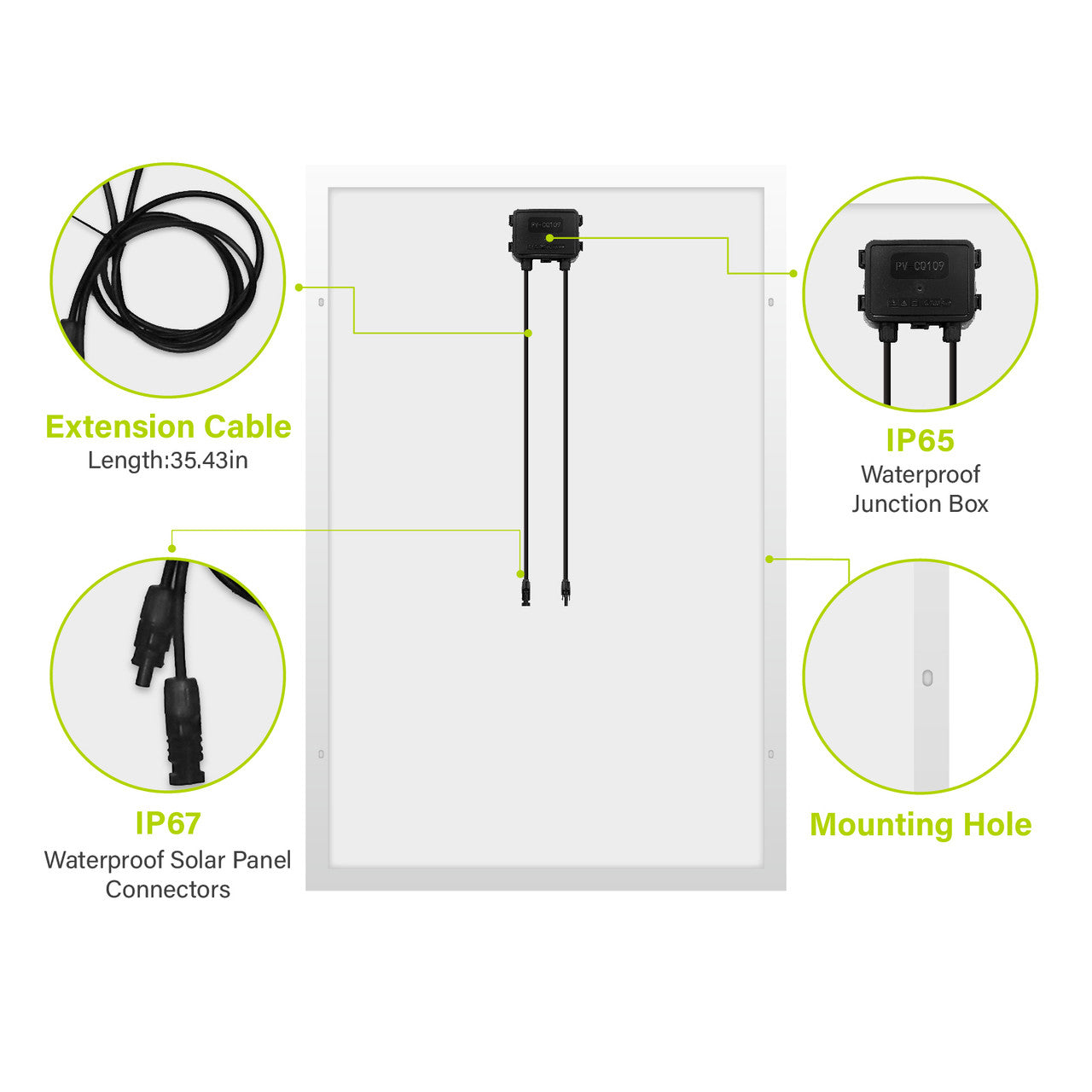

- Built-in bypass diodes within junction box that minimize power drops caused by shading
- Pre-attached 3ft wire with connectors (M/F)

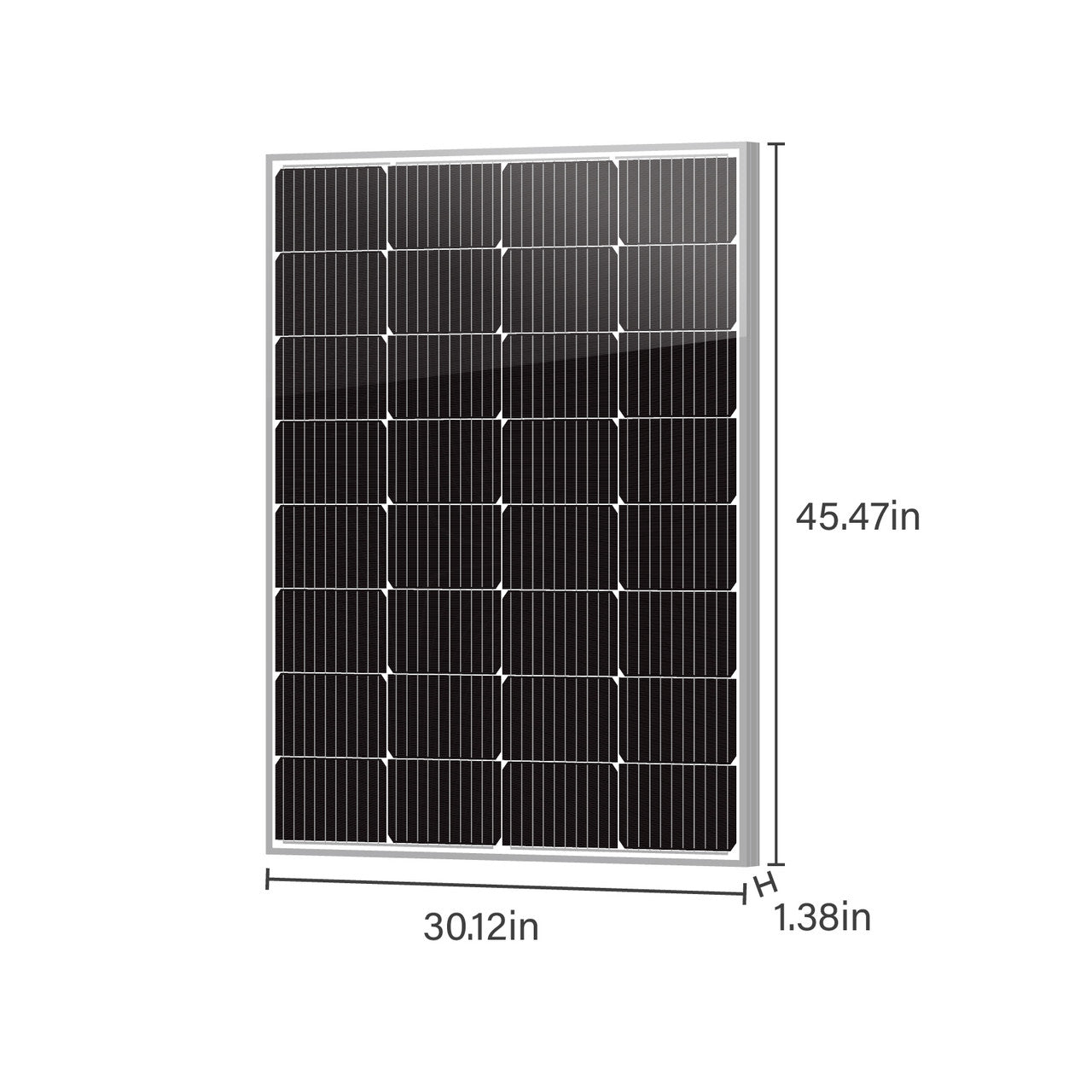

- Dimension: 45.47 x 30.12 x 1.38 in (1155 x 765 x 35 mm)
- Compatible mount brackets (sold separately): NPB-UZ (2 sets recommended), NPB-220P, NPB-400T
Tech & Specs
- Product Code NPA180S-12J
- Maximum power (Pmax)180W
- Voltage at Pmax (Vmp)18.62V
- Current at Pmax (Imp)9.44A
- Open-circuit voltage (Voc)21.86V
- Short-circuit current (Isc)10.05A
- Temperature coefficient of Voc-0.28%/°C
- Temperature coefficient of Isc+0.05%/°C
- Temperature coefficient of power-0.36%/°C
- NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s)45±2°C
- Operating temperature-40°C to 85°C
- Maximum system voltage1000V DC
- Power tolerance± 3%
- Maximum Series Fuse Rating15A
