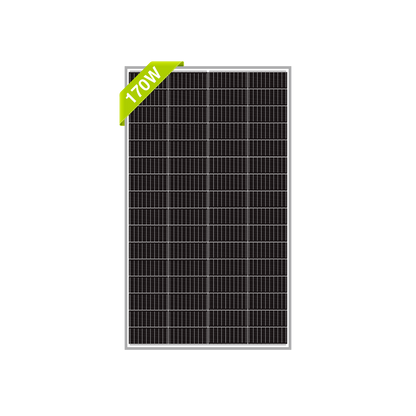

170W 12V Monocrystalline Solar Panel

Newpowa's 170W 12V Monocrystalline High-Efficiency Solar Panel is commonly paired with RV, marine, camping, traffic signals, and various off-grid applications.

Key Features

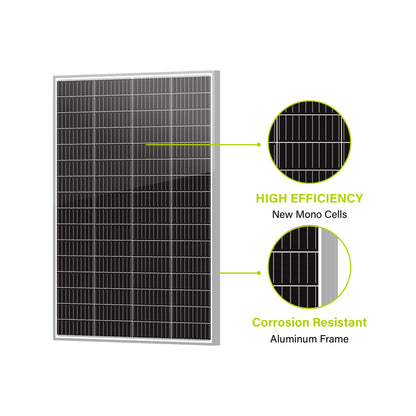

• 170W/12V Monocrystalline high-efficiency solar panel
• High-performance cells encapsulated in EVA (ethylene-vinyl-acetate)
• Nominal 12V DC for standard output
• Heavy-duty anodized frame with pre-drilled holes for mounting
• Rugged design to withstand high winds (2400Pa), hail &snow load (5400Pa)
• High-transparent, low iron tempered glass
• Durable TPT backsheet - dissipates heat to optimize performance and enhance longevity

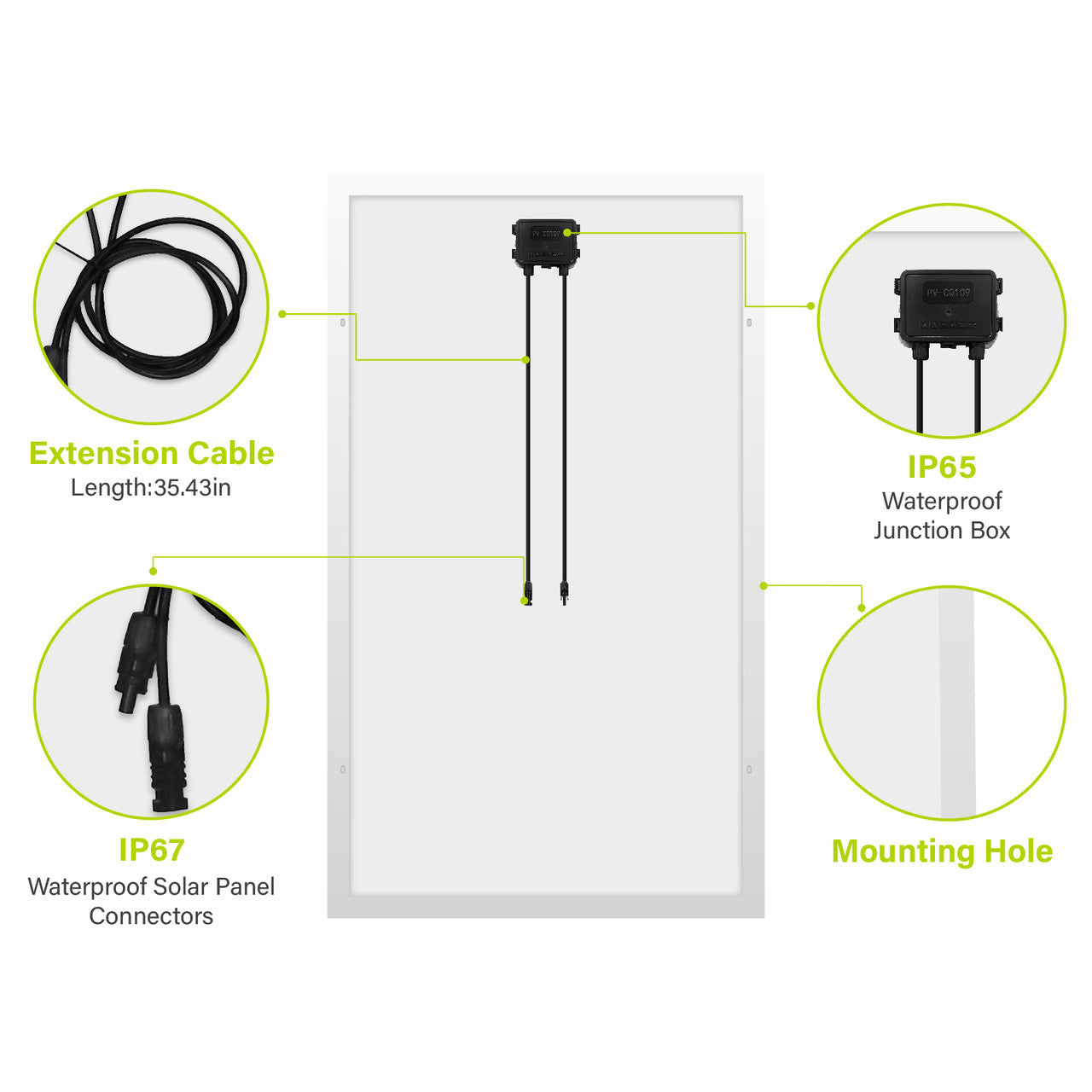

• Built-in bypass diodes within junction box that minimize power drops caused by shading
• Pre-attached 3ft wire with connectors (M/F)

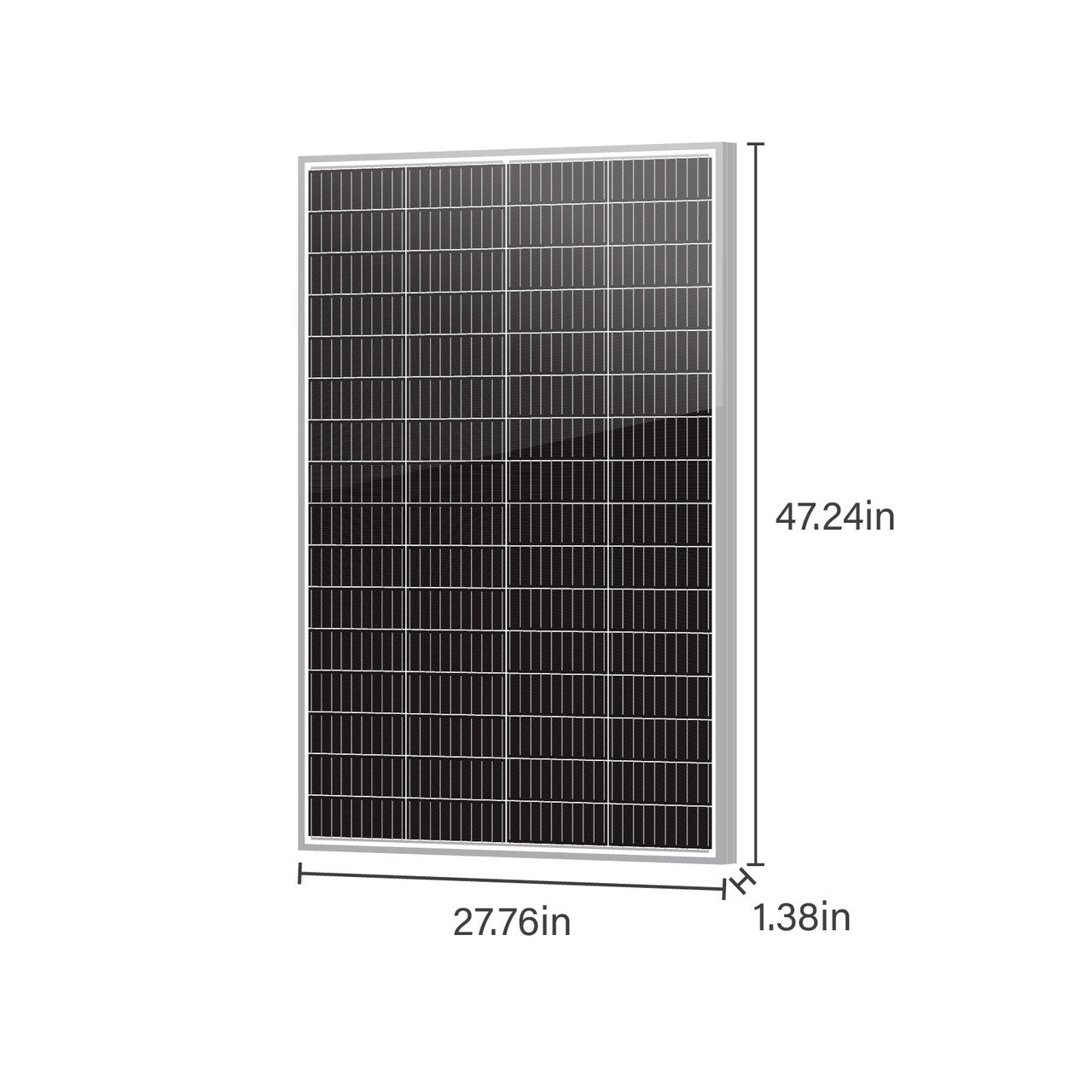

• Dimension: 47.24 x 27.76 x 1.38 in (1200 x 705 x 35 mm)
• Compatible mount brackets (sold separately): NPB-UZ, NPB-UM, NPB-UP, NPB-UV, NPB-220P, NPB-410P, NPB-440P, NPB-200T, NPB-400T

Tech & Specs

• Product CodeNPA170D-12J
• Maximum power (Pmax)170W
• Voltage at Pmax (Vmp)18.44V
• Current at Pmax (Imp)9.22A
• Open-circuit voltage (Voc)21.64V
• Short-circuit current (Isc)9.82A
• Temperature coefficient of Voc-0.36%/K

• Temperature coefficient of Isc+0.07%/K
• Temperature coefficient of power-0.38%/K
• NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s)45±2°C
• Operating temperature-40°C to 85°C
• Maximum system voltage1000V DC
• Power tolerance± 3%
• Maximum Series Fuse Rating15A

Download Data Sheet
