NPA100M-12J

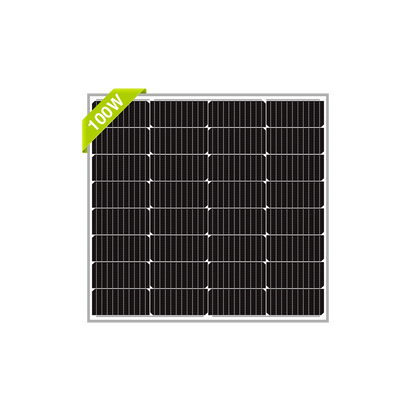

100W 12V Compact Mono Solar Panel
$75.00
Pairs well with
100W 12V Compact Mono Solar Panel
$75.00
Product details
Newpowa's 100W 12V Compact Mono High-efficiency Solar Panel is commonly paired with RV, marine, gate opener, overlanding, van / airstream conversions, and various off-grid applications.
Key Features

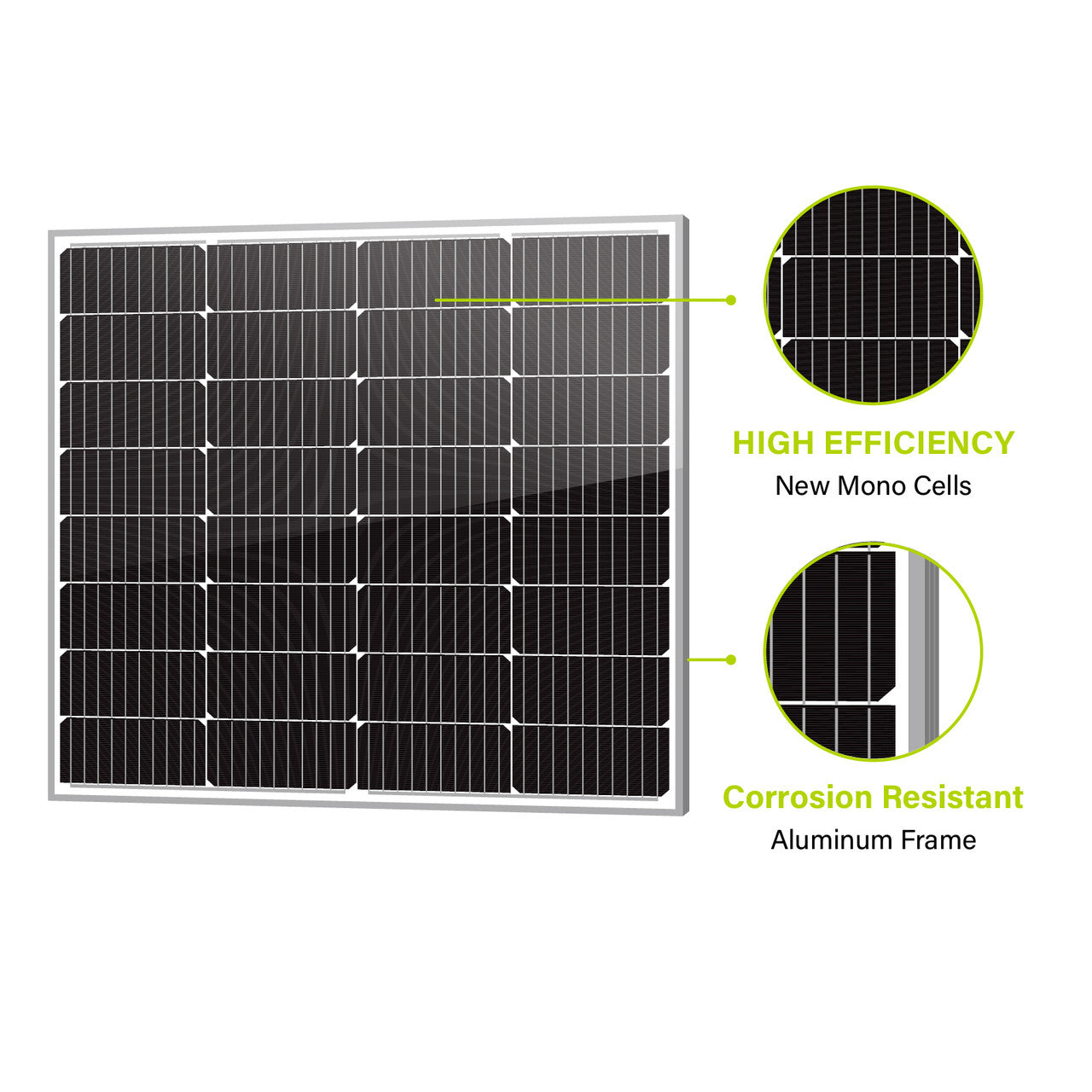

- Ultra High-Performance cells encapsulated in EVA (ethylene-vinyl-acetate)
- Maximum Efficiency: 21%
- Nominal 12V DC for standard output
- Heavy-duty anodized frame with pre-drilled holes for mounting
- Rugged design to withstand high winds (2400Pa), hail & snow load (5400Pa)
- High-transparent, low iron tempered glass
- Durable TPT backsheet - dissipates heat to optimize performance and enhance longevity

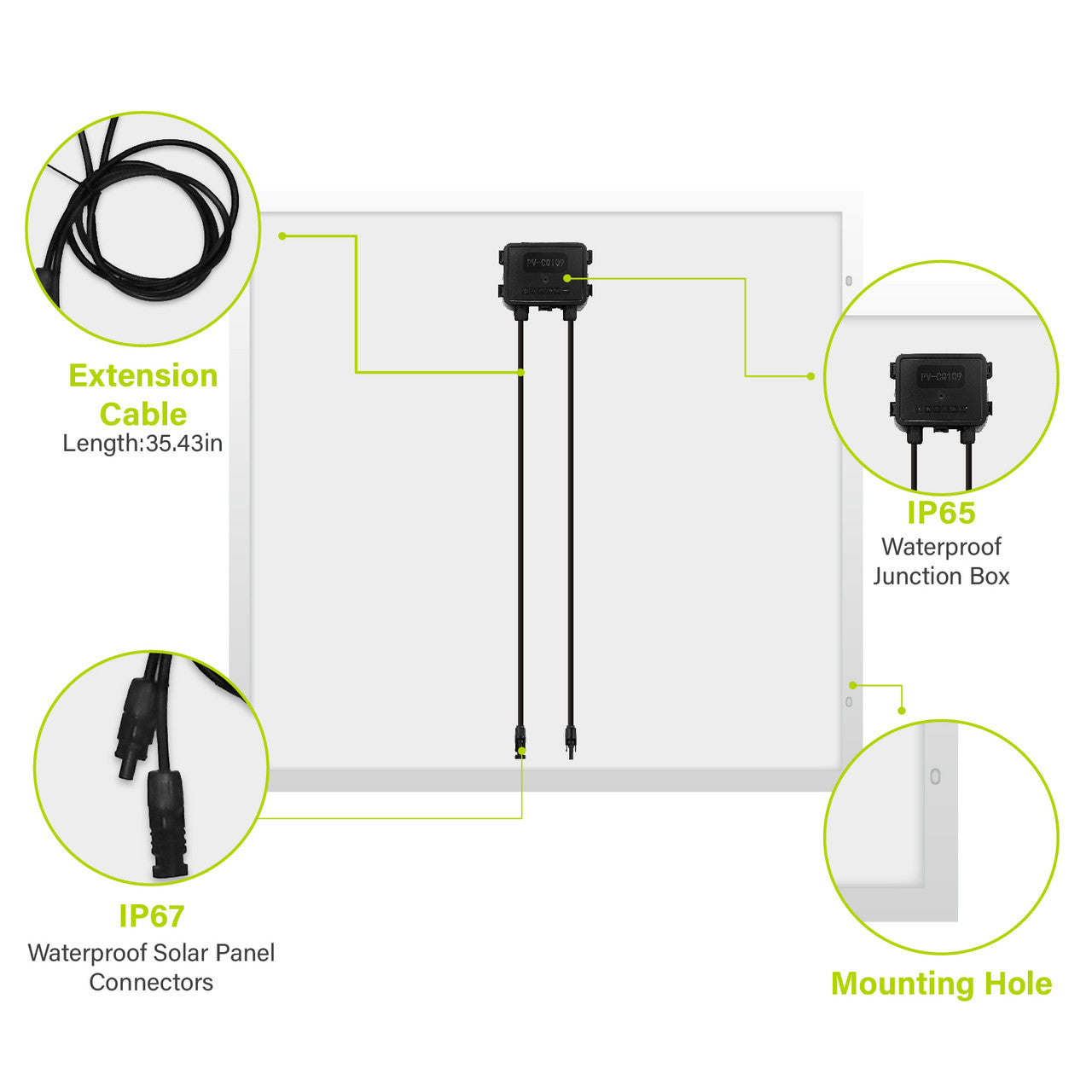

- Built-in bypass diodes within junction box that minimize power drops caused by shading
- Pre-attached 3ft wire with connectors (M/F)

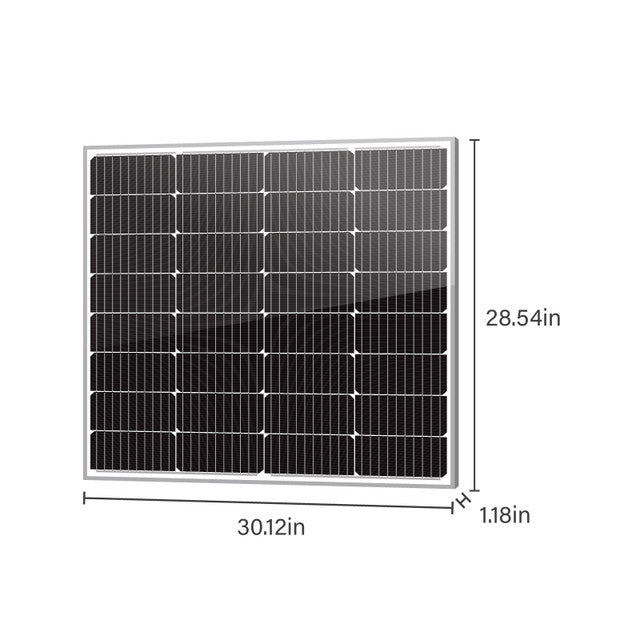

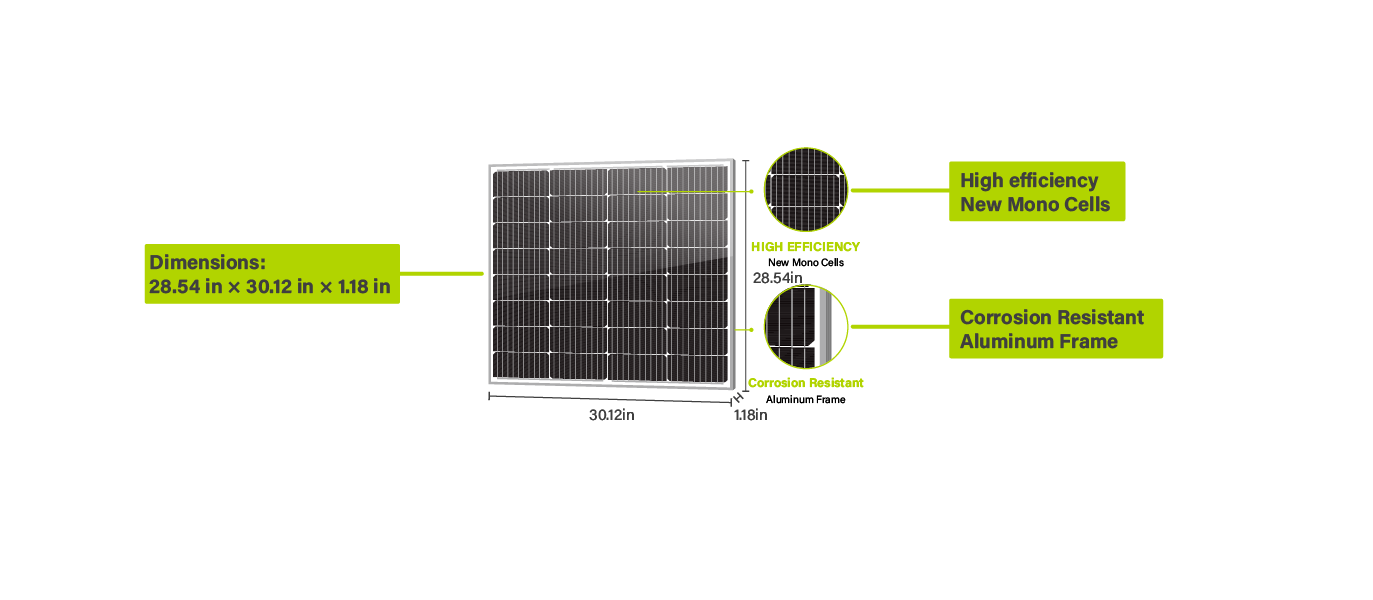

- Product dimensions: 28.54 x 30.12 x 1.18 in (725 x 765 x 30 mm)
- Compatible mount brackets (sold separately): NPB-UV, NPB-UZ, NPB-UM, NPB-UP, NPB-220P, NPB-440P (need 2 pcs of NPA100M-12J), NPB-400T
Tech & Specs
- Product CodeNPA100M-12J
- Maximum power (Pmax)100W
- Voltage at Pmax (Vmp)18.44V
- Current at Pmax (Imp)5.43A
- Open-circuit voltage (Voc)21.64V
- Short-circuit current (Isc)5.79A
- Temperature coefficient of Voc-0.36%/K
- Temperature coefficient of Isc+0.07%/K
- Temperature coefficient of power-0.38%/K
- NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s)45±2°C
- Operating temperature-40°C to 85°C
- Maximum system voltage1000V DC
- Power tolerance± 3%
- Maximum Series Fuse Rating15A
